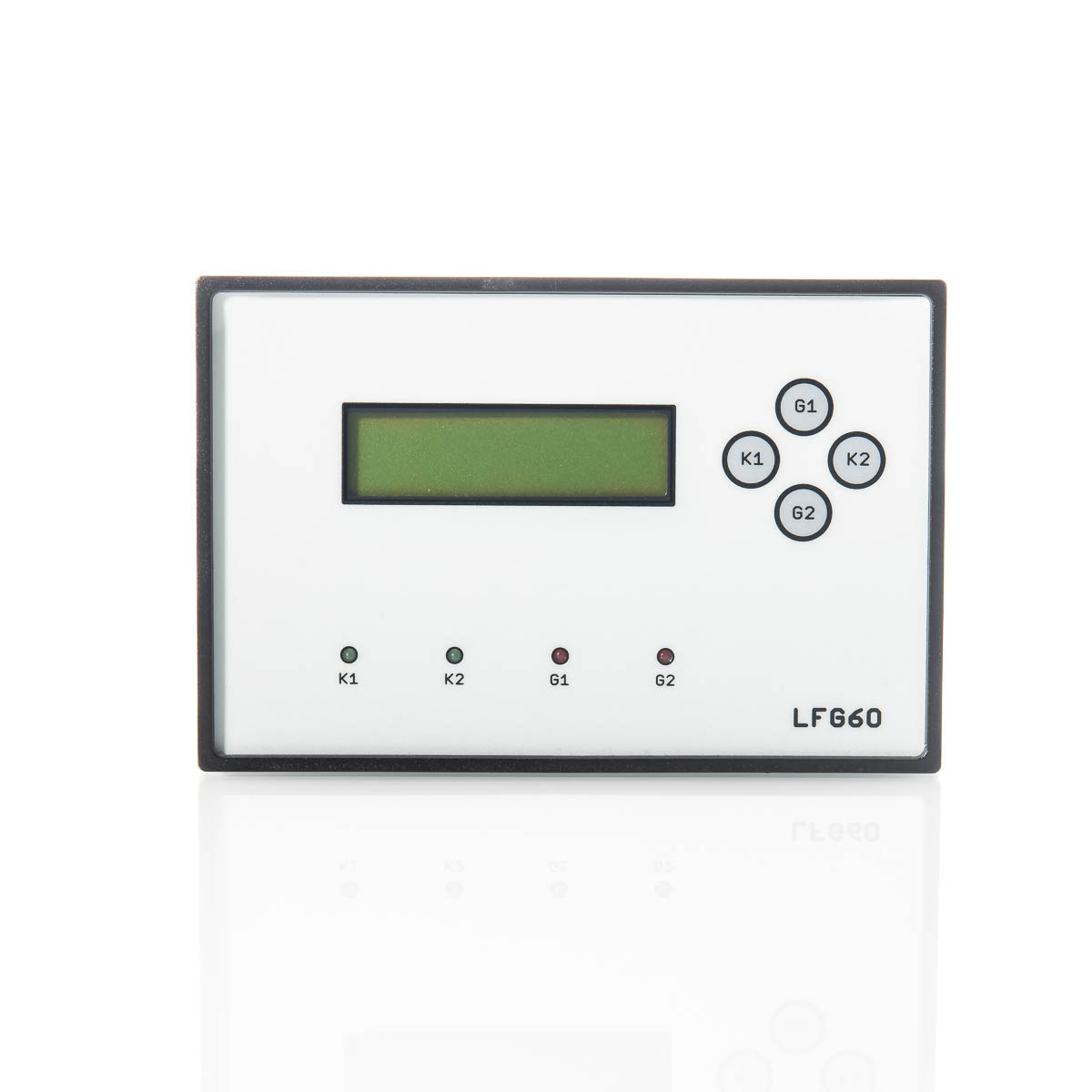

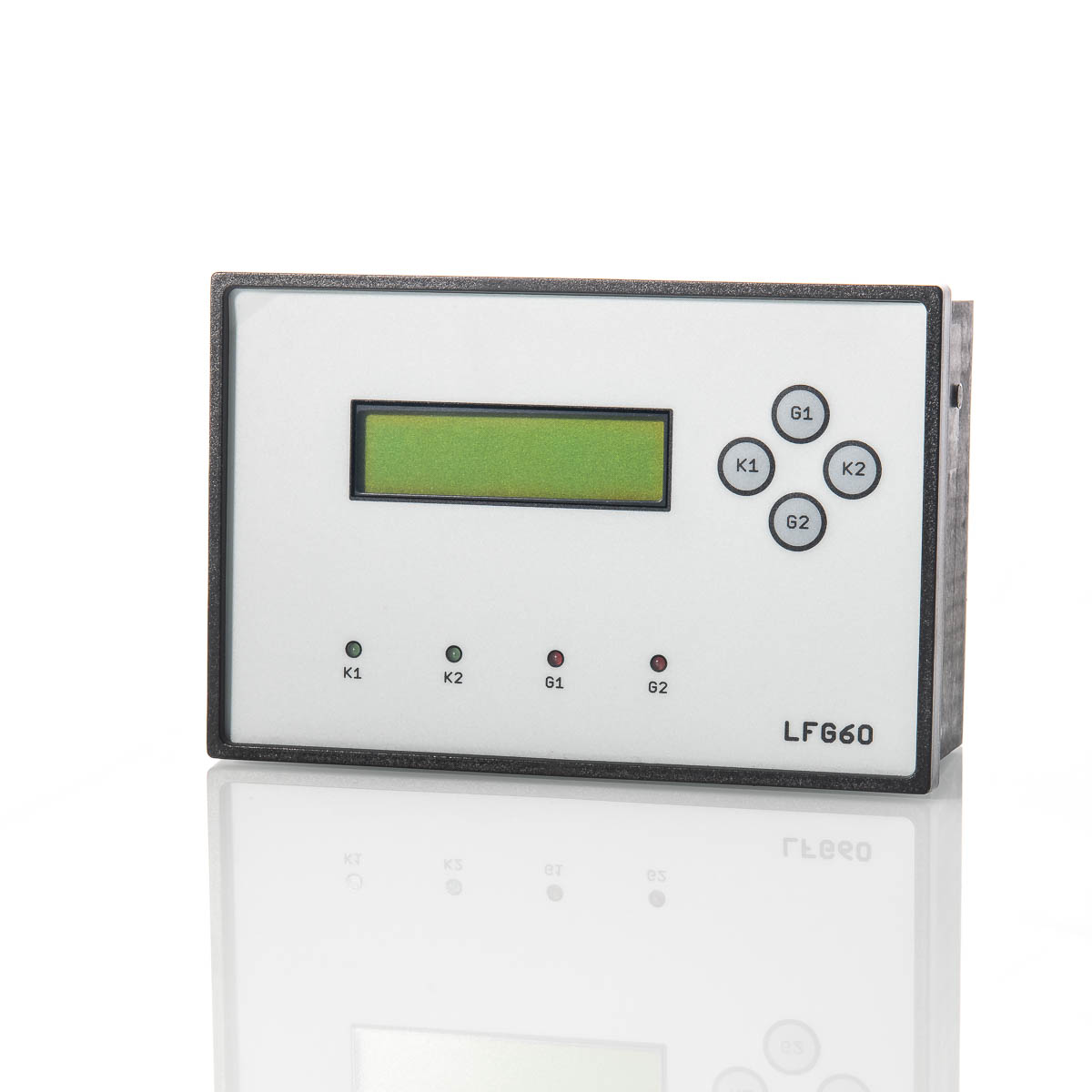

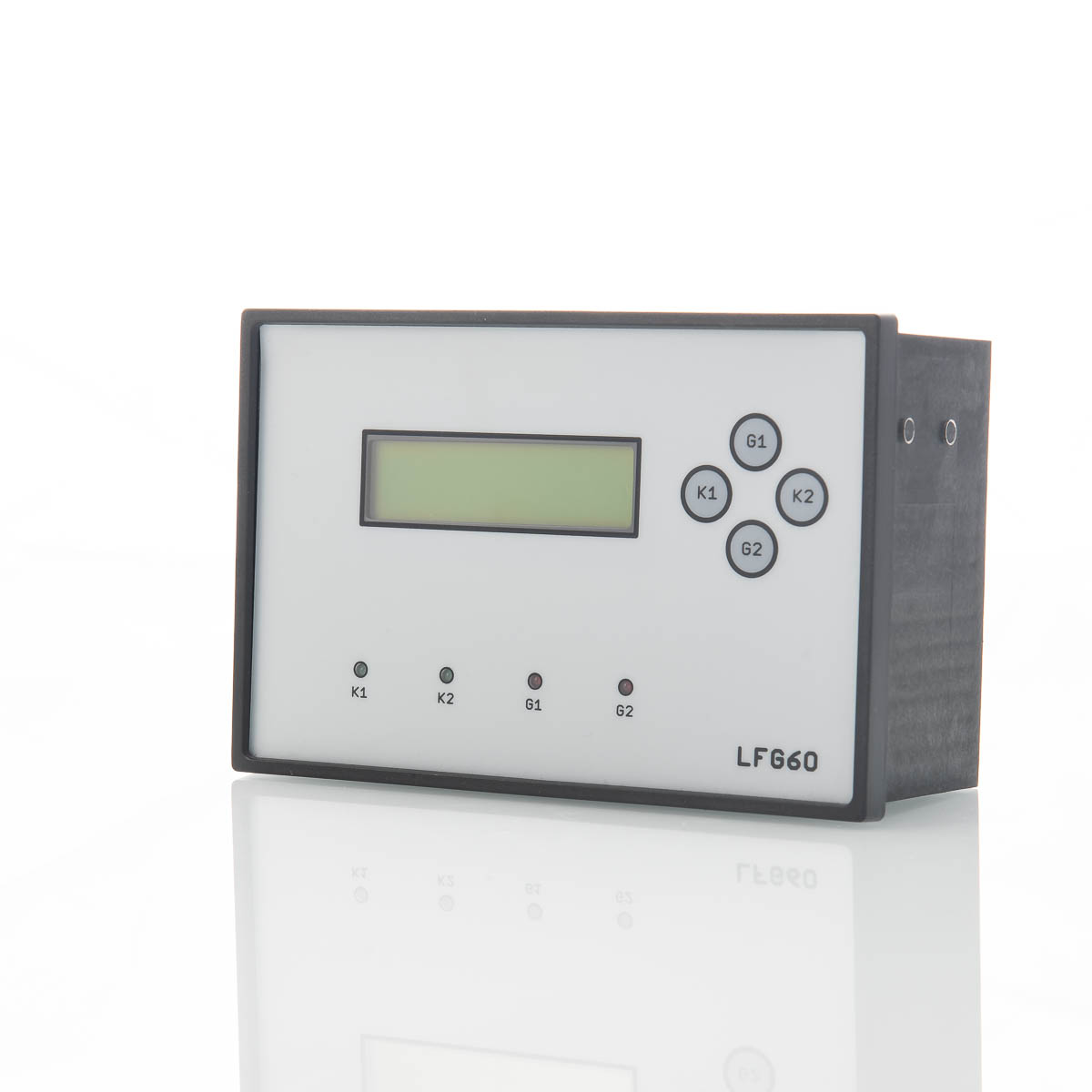

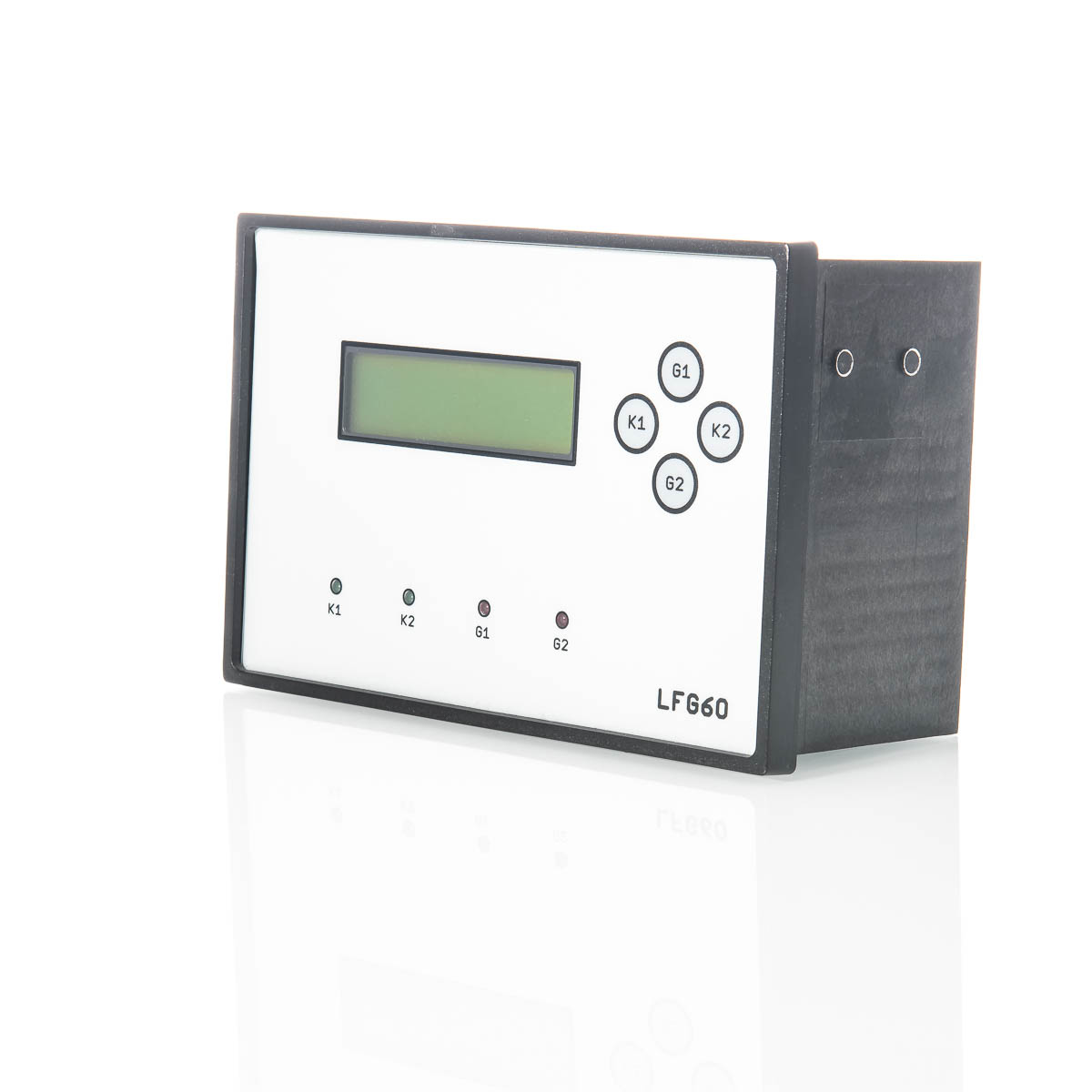

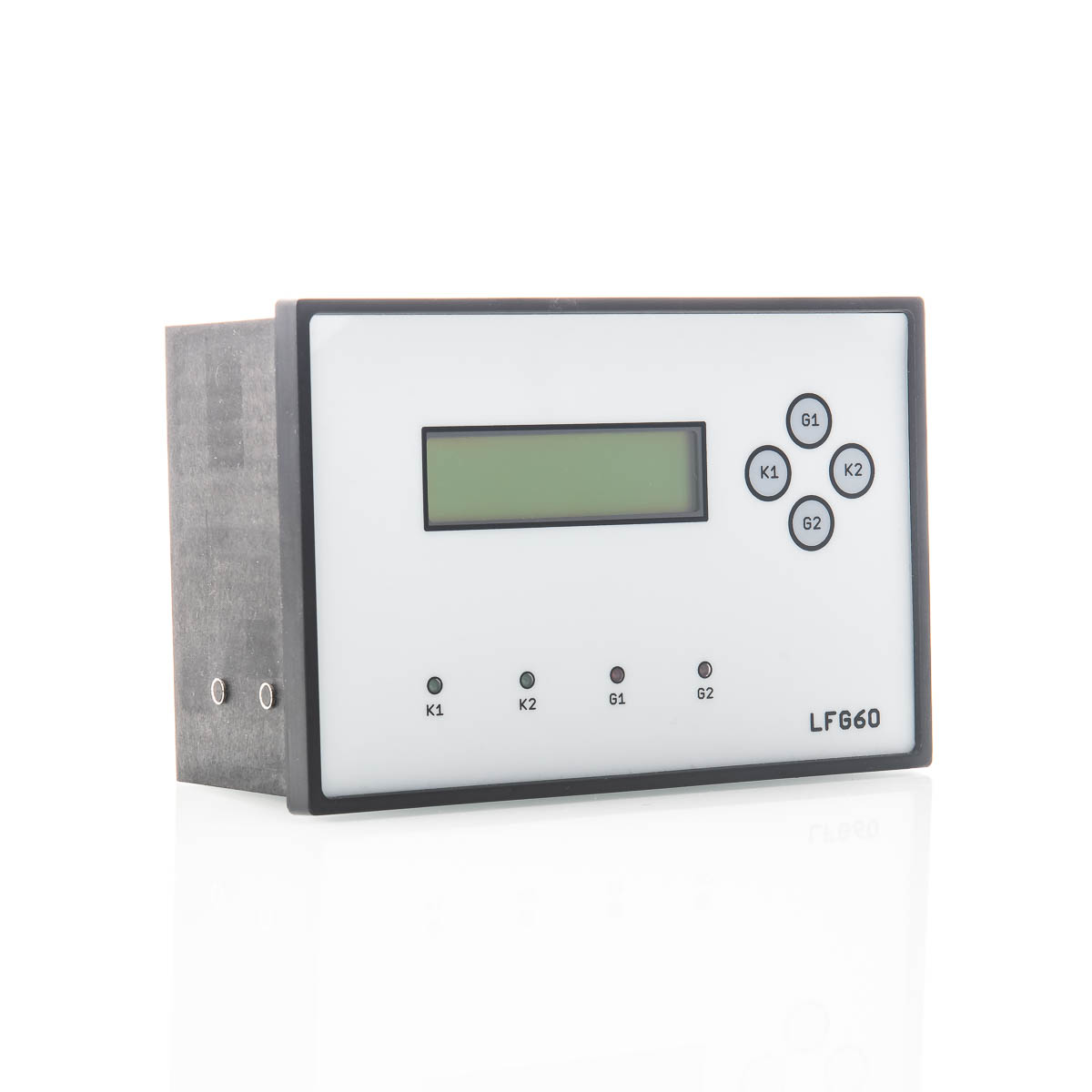

Device for measuring the electrical conductivity of aqueous solutions in connection with two-electrode measuring cells. Device with various control functions.
| Display | alphanumeric display, illuminated, 4 control buttons and 4 LEDs |
|---|---|
| Measuring ranges | 2/20/200/2000μS/cm |
| Alarm value display | Optically via LED, limit values adjustable between 1 and 100 % |
| Installation | Control cabinet installation |
| Measuring cell | Measuring cell cable |
| Measuring cell factor | |
| Optional switching contact | 2 potential-free switches |
| Temperature compensation | optional |
| Power connection | 230V AC or 24V DC possible |
| Dimensions in mm | 144 x 96 x 60,5 |
