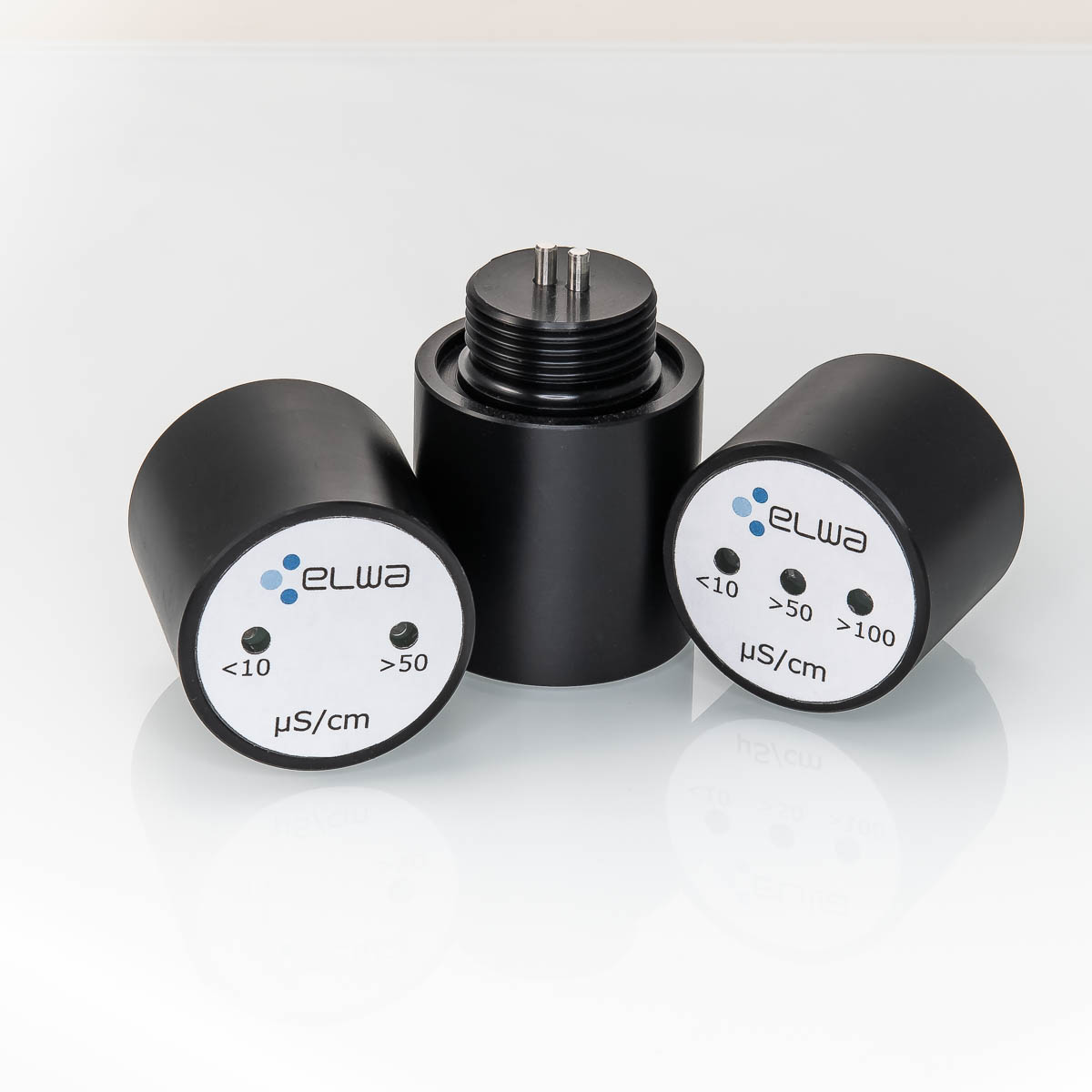

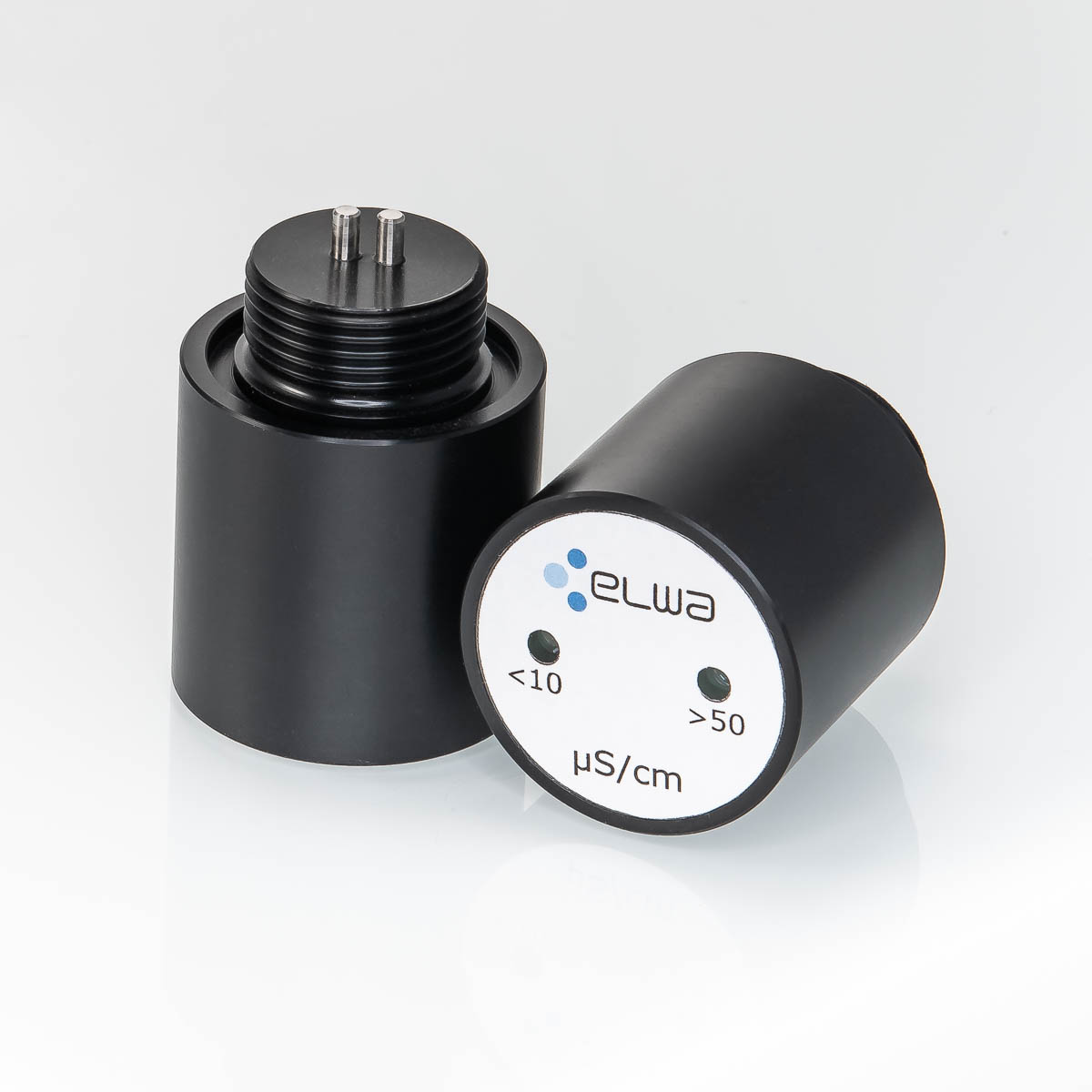

The Micro-LFG is a conductivity meter for the permanent capacity monitoring of an ion exchange cartridge. It is battery-operated and equipped with an integrated measuring cell, making it ready for immediate use. The conductivity range of the solution to be measured can be displayed using the LEDs. Various measuring ranges are possible. It is indicated whether the aqueous solution is within the desired norm range or if a cartridge or resin change is necessary.

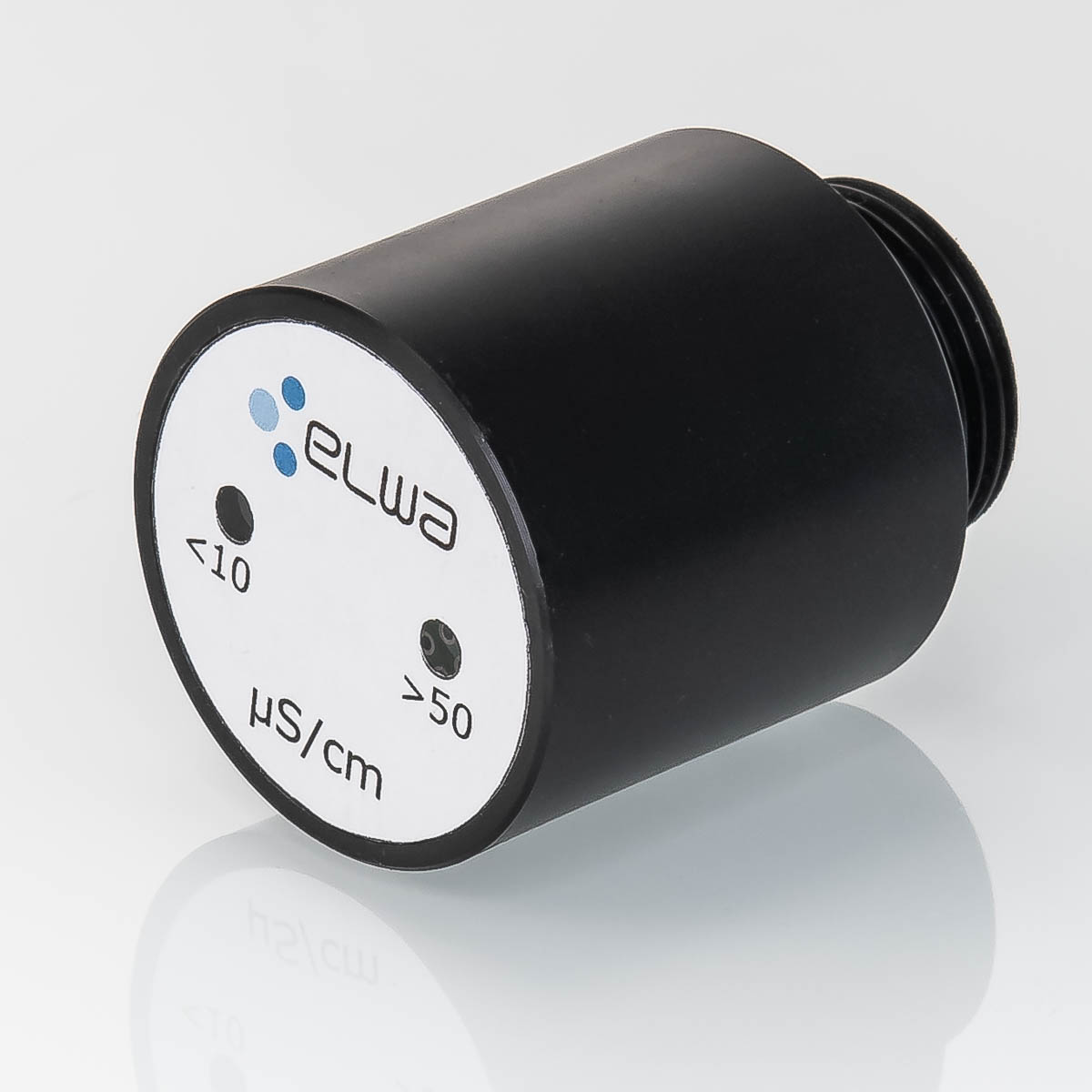

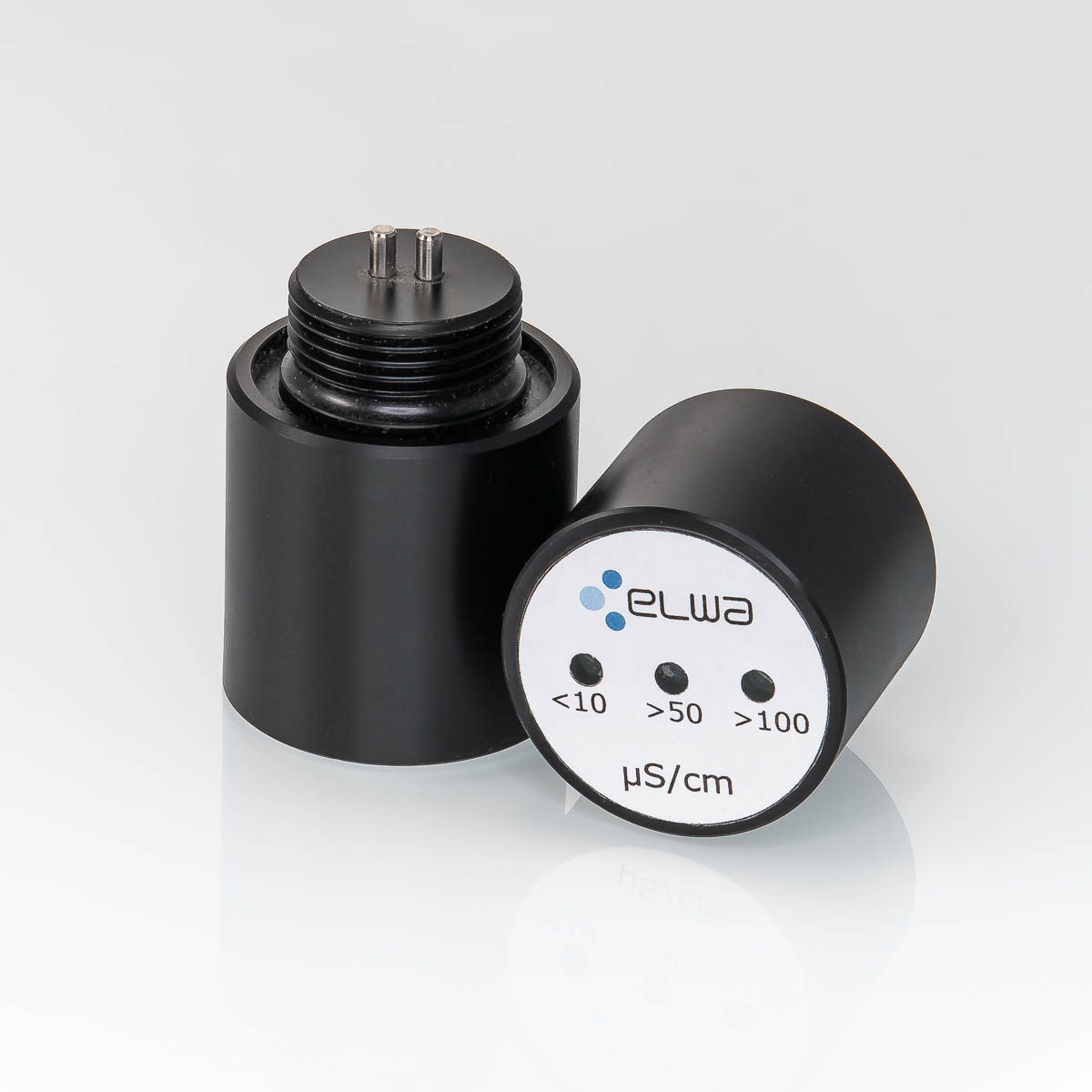

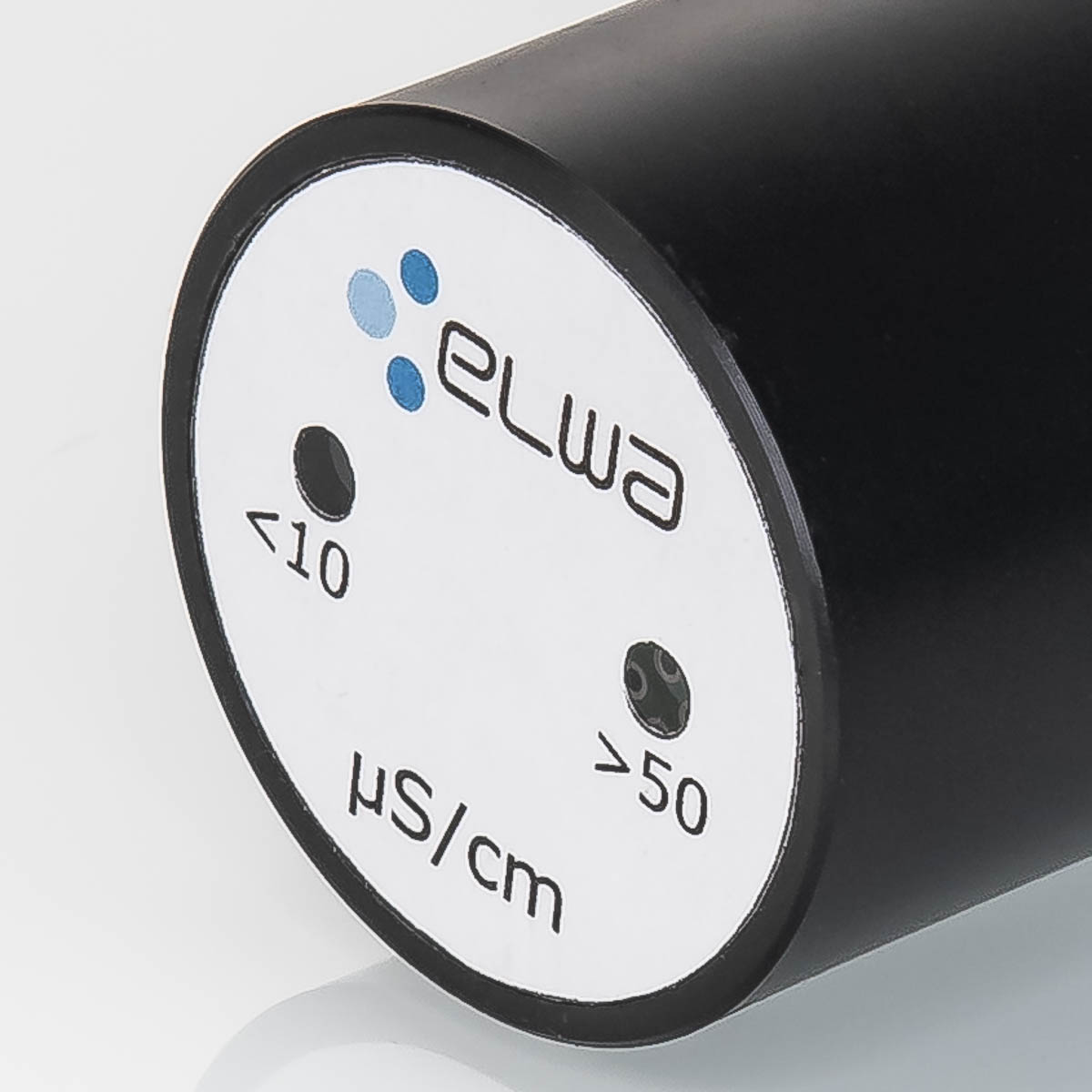

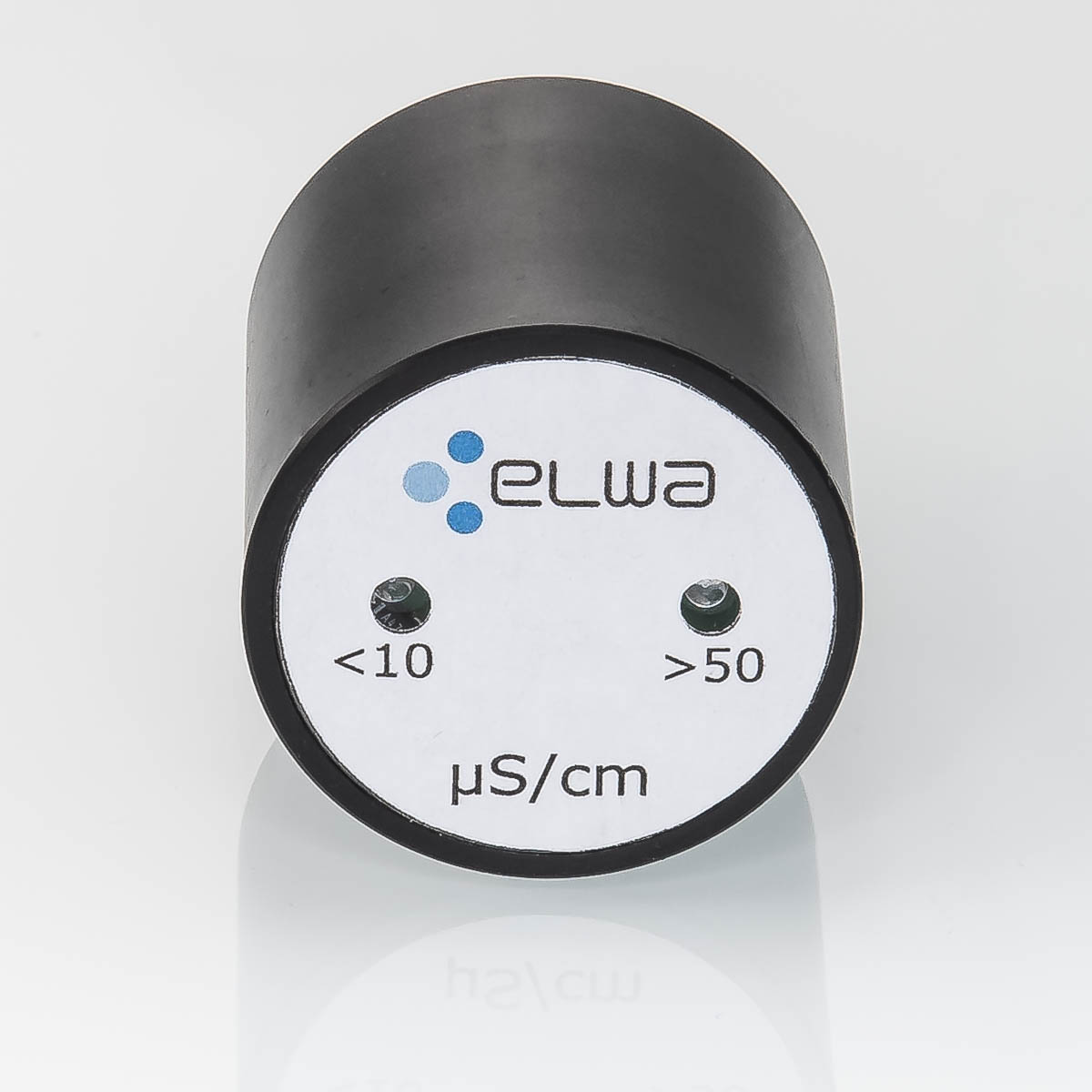

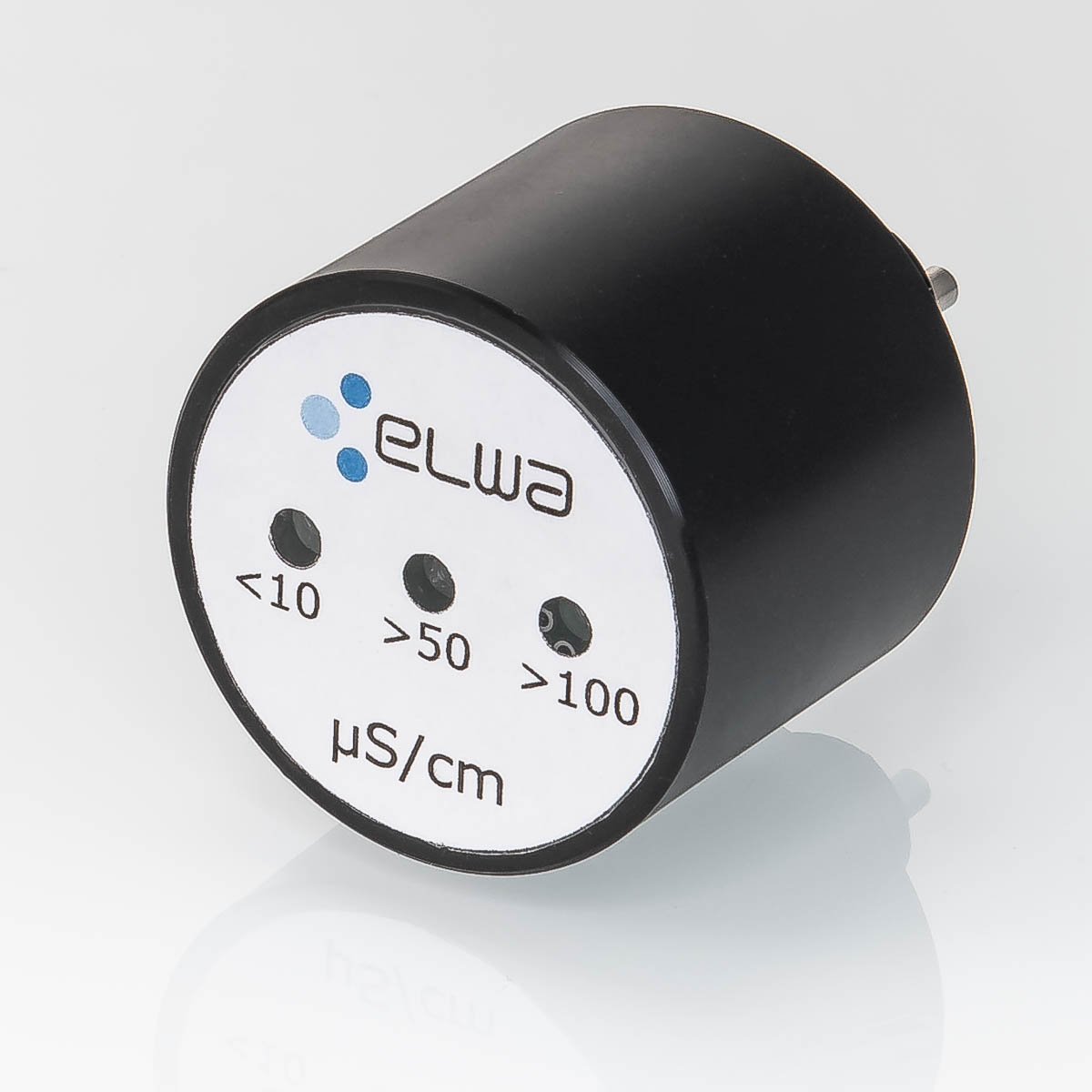

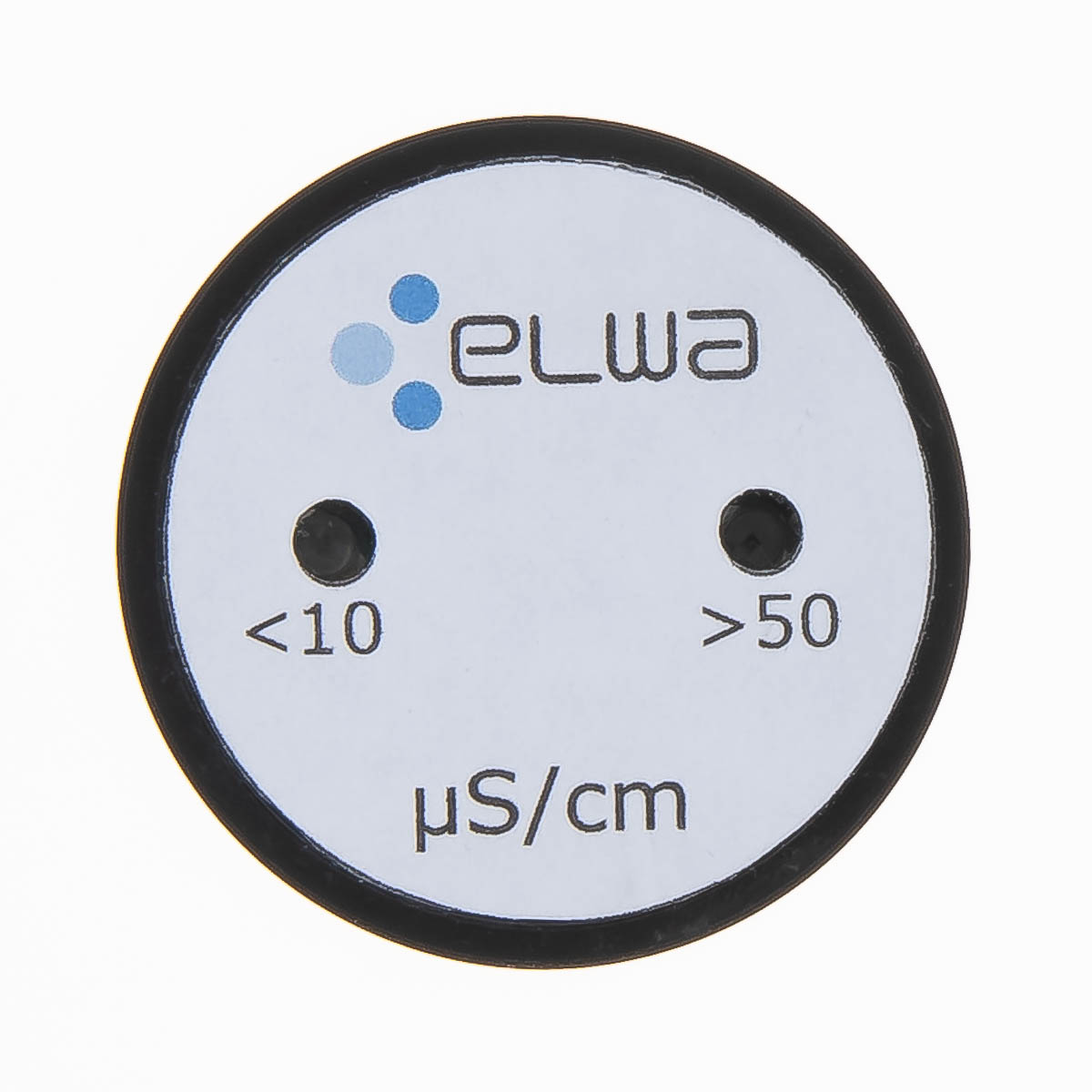

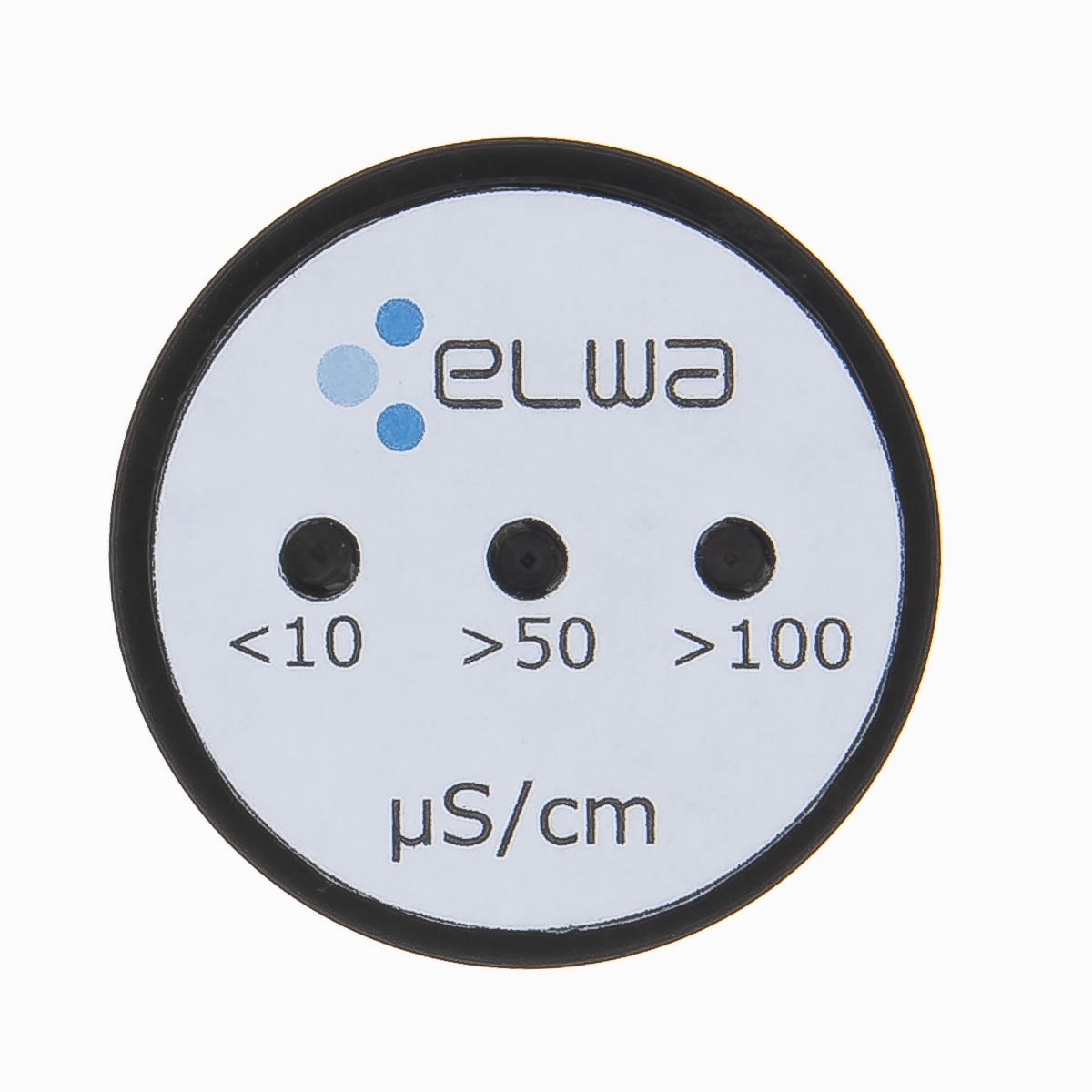

| Display | optically via LED (optionally 2 or 3 LEDs) |
|---|---|
| Measuring ranges | selectable |
| Alarm value display | Optically via LED |
| LED configuration | According to customer specifications |

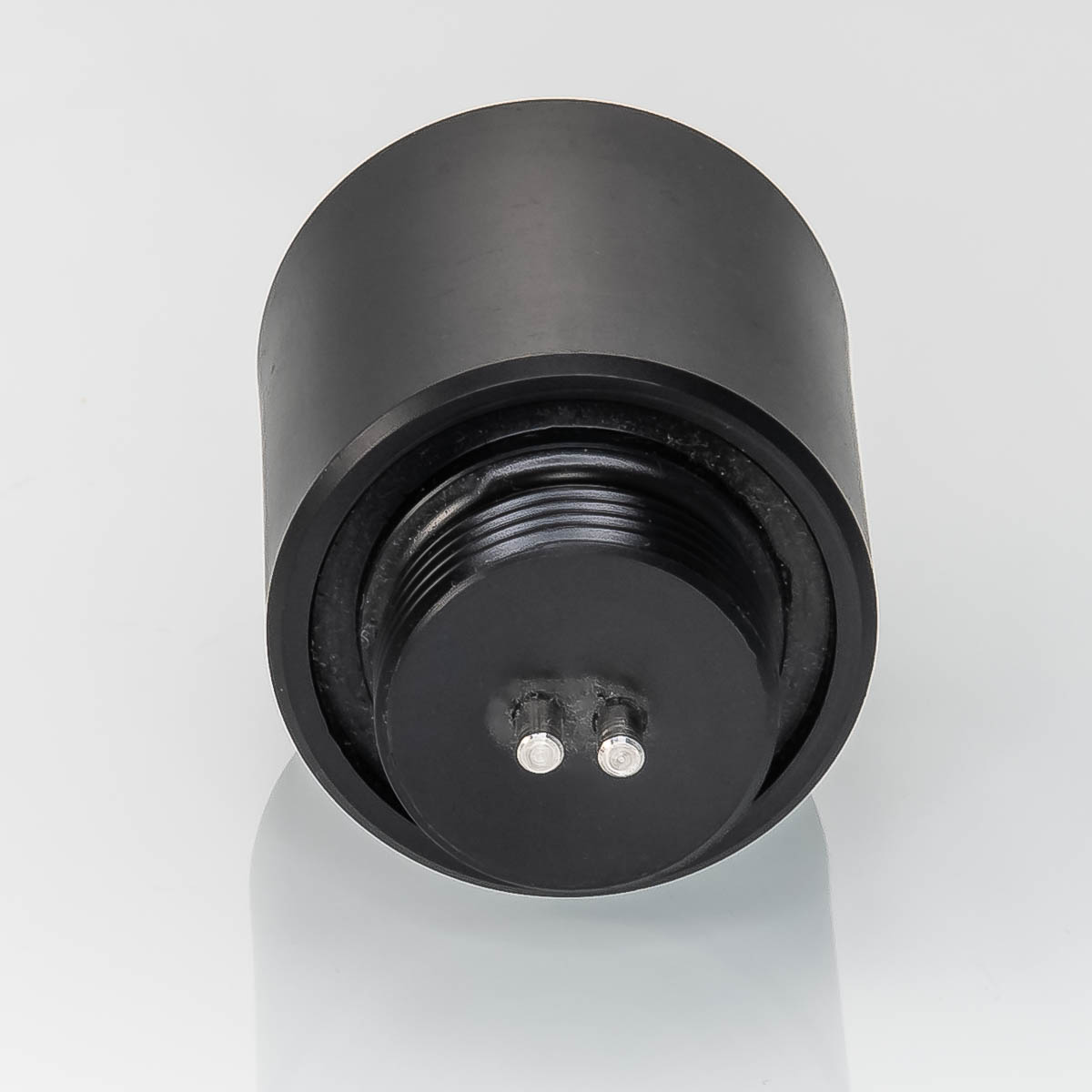

| Measuring cell | Integrated Connection thread: optional |
| Measuring cell factor | C=0,6 |
| Temperature compensation | None |
| Battery | Lifespan 5 years each, replaceable |

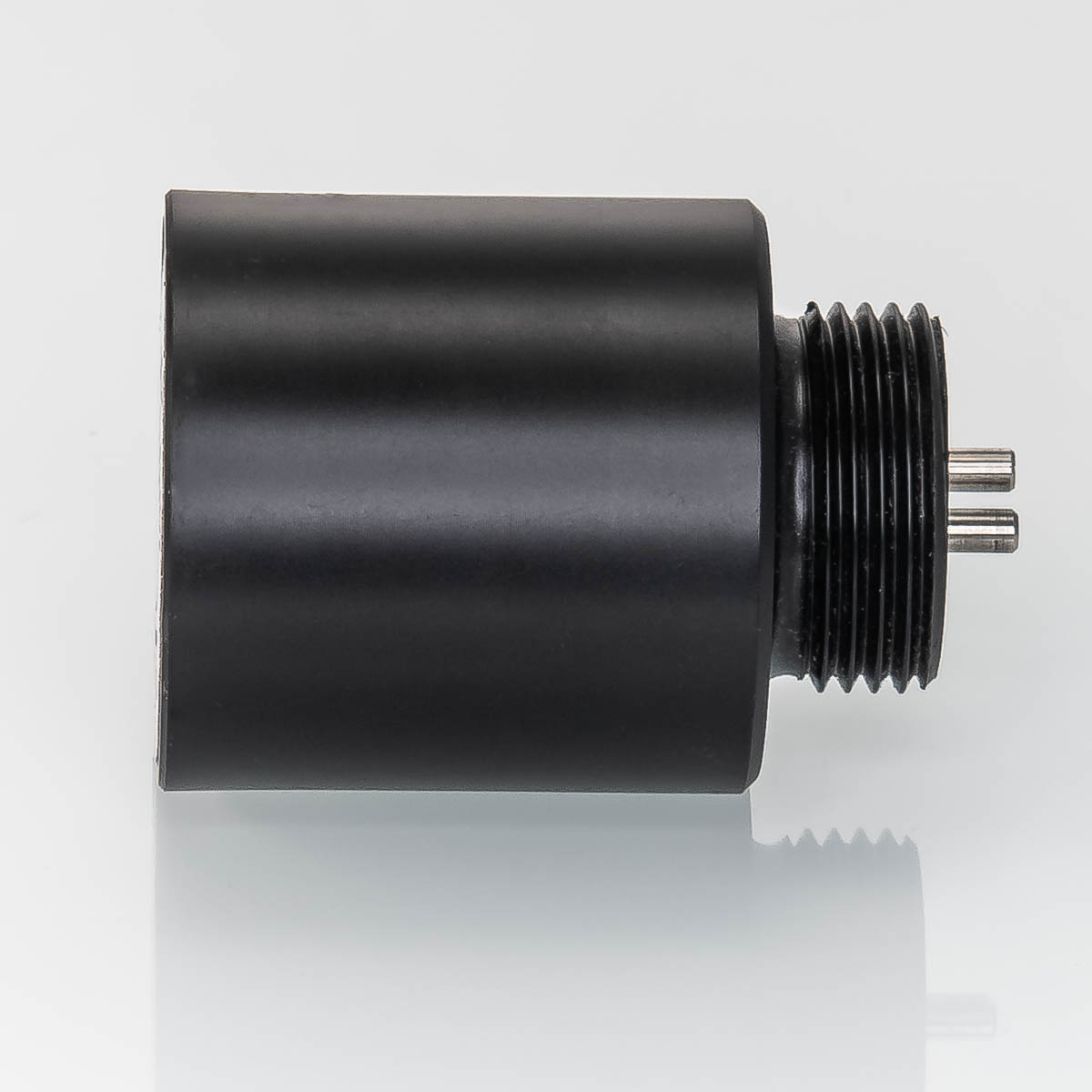

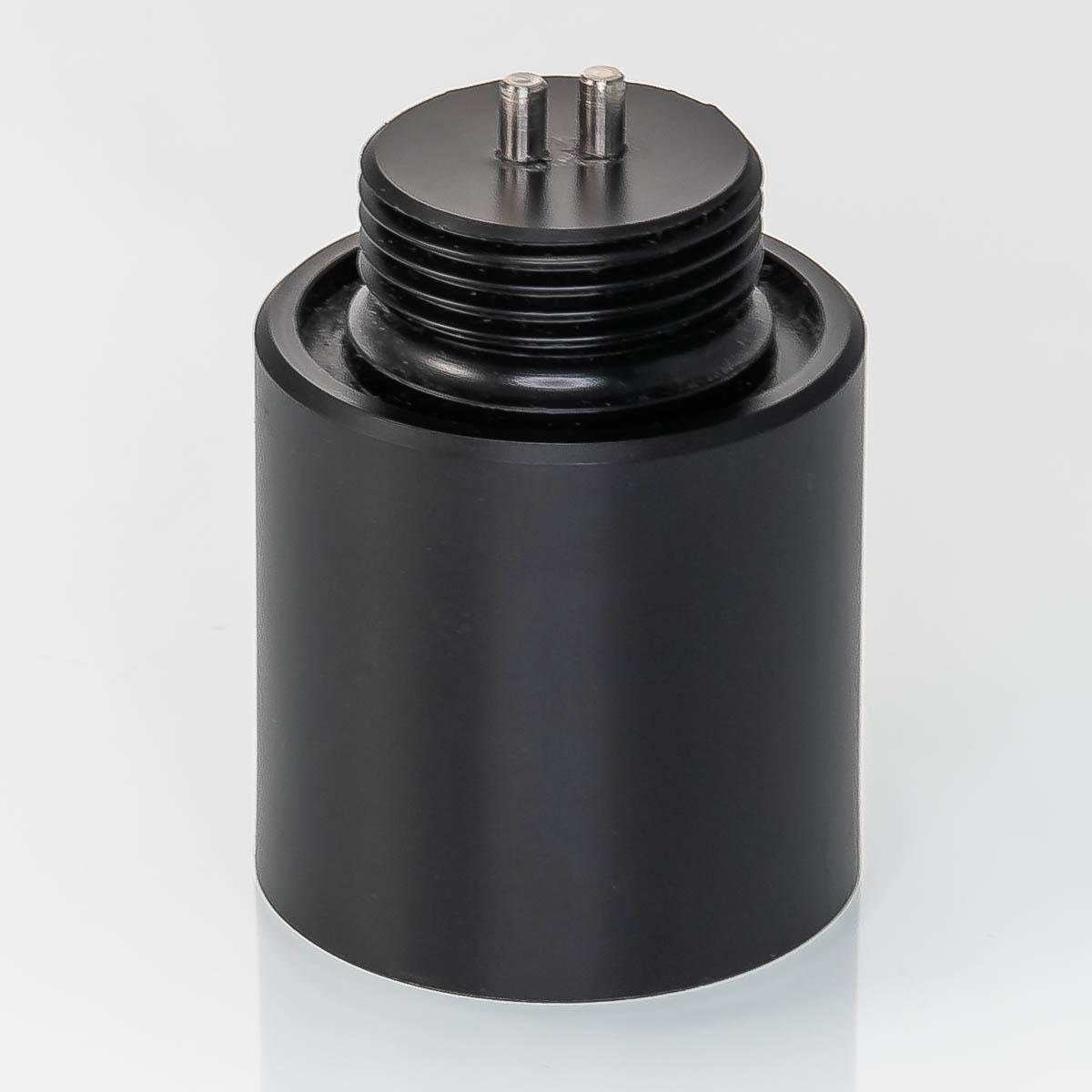

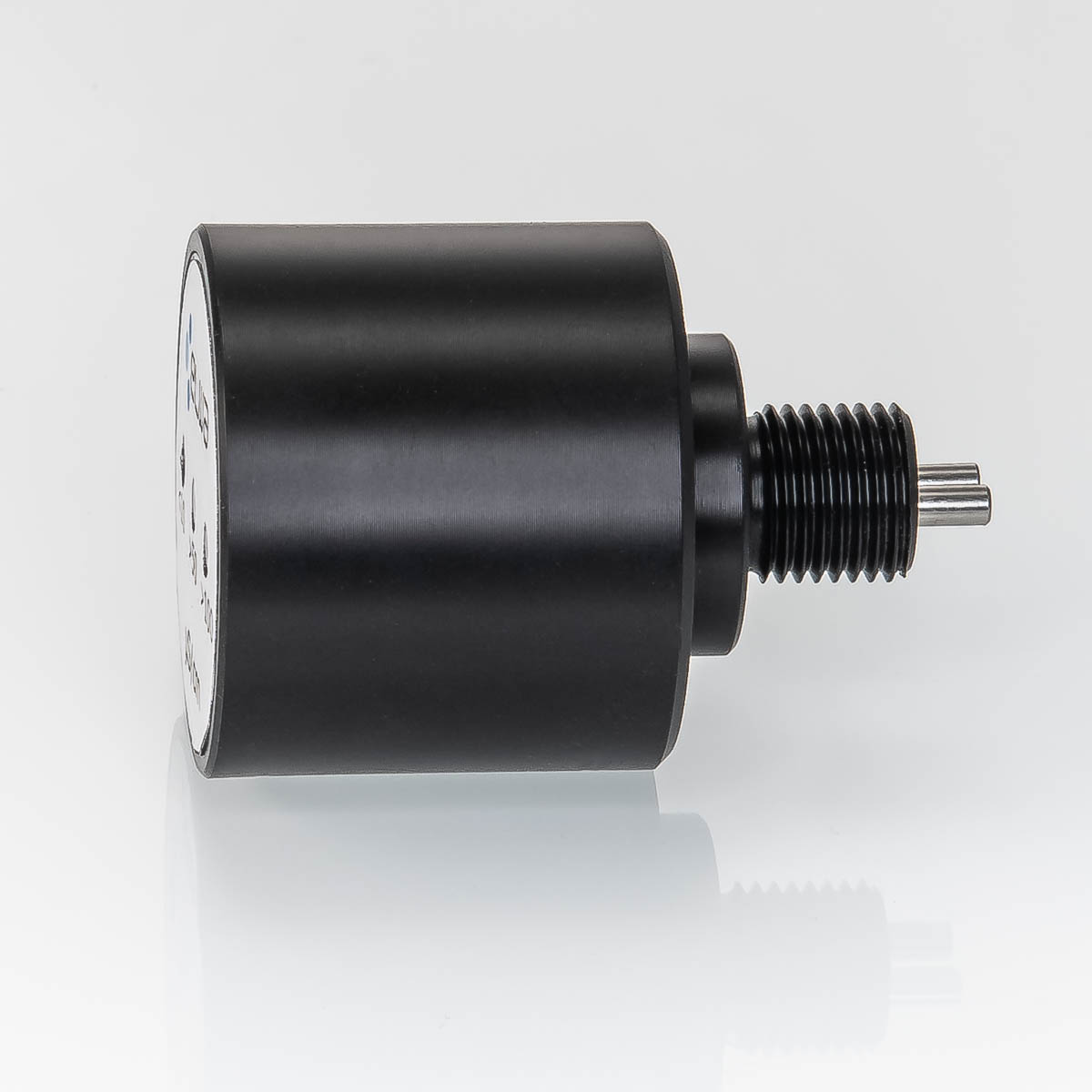

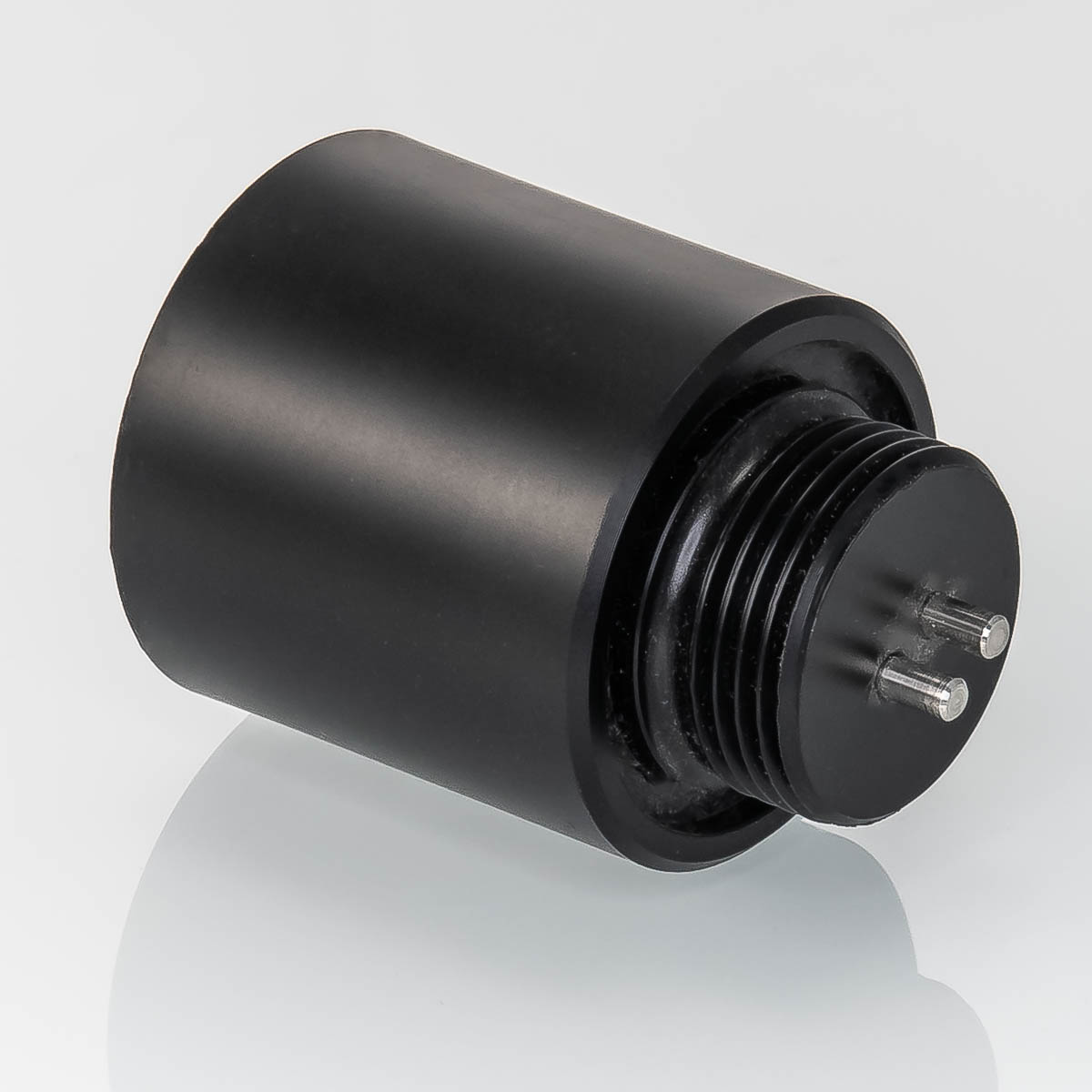

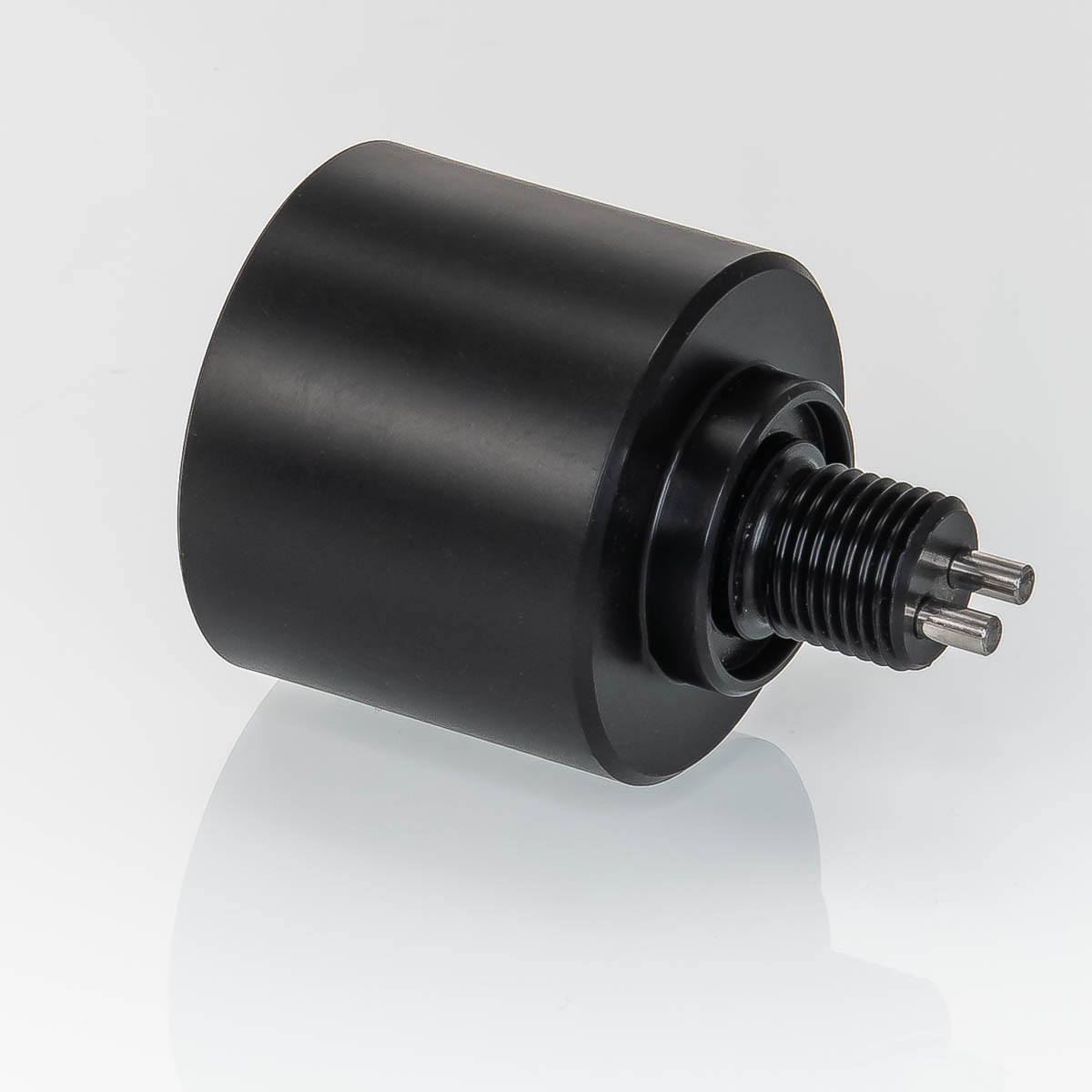

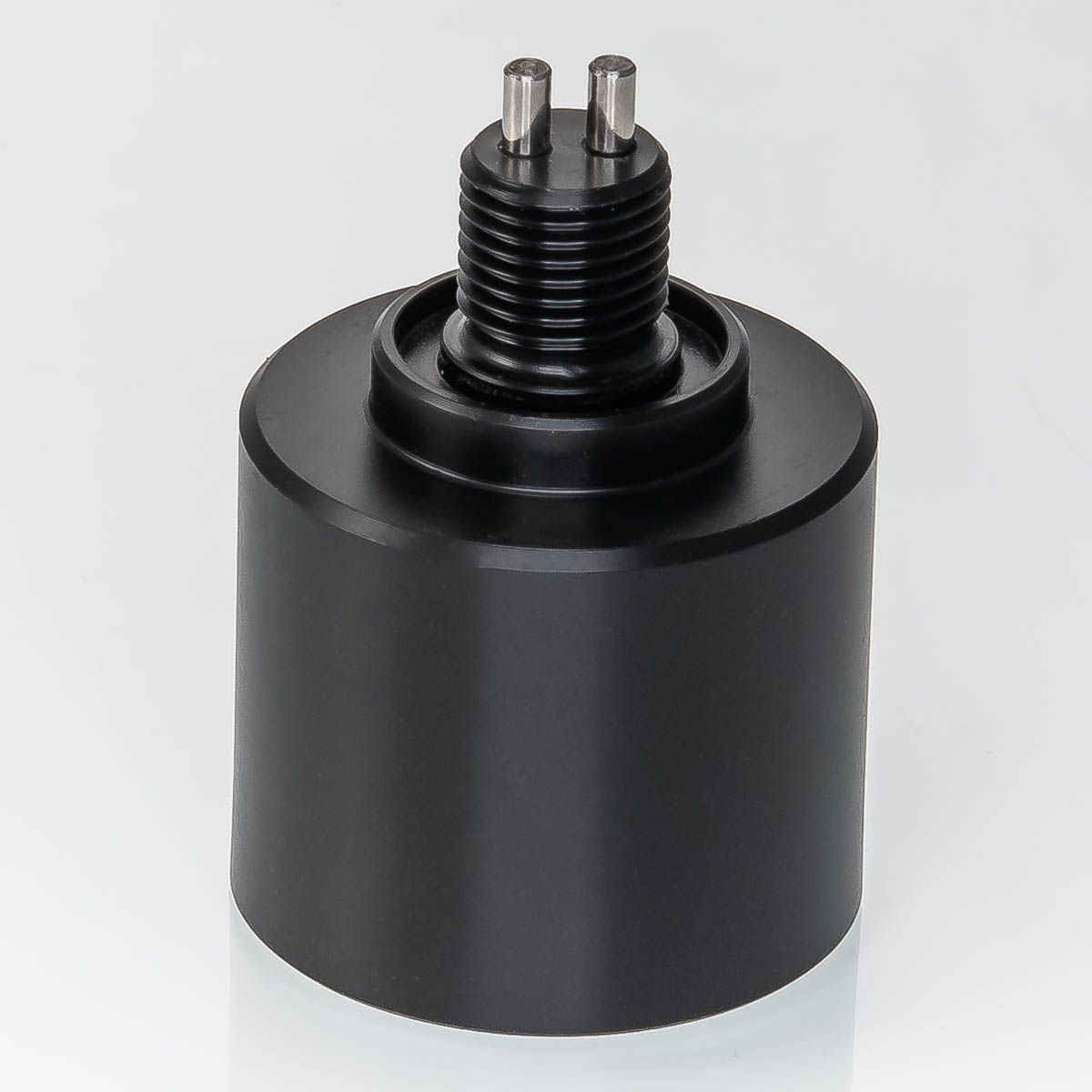

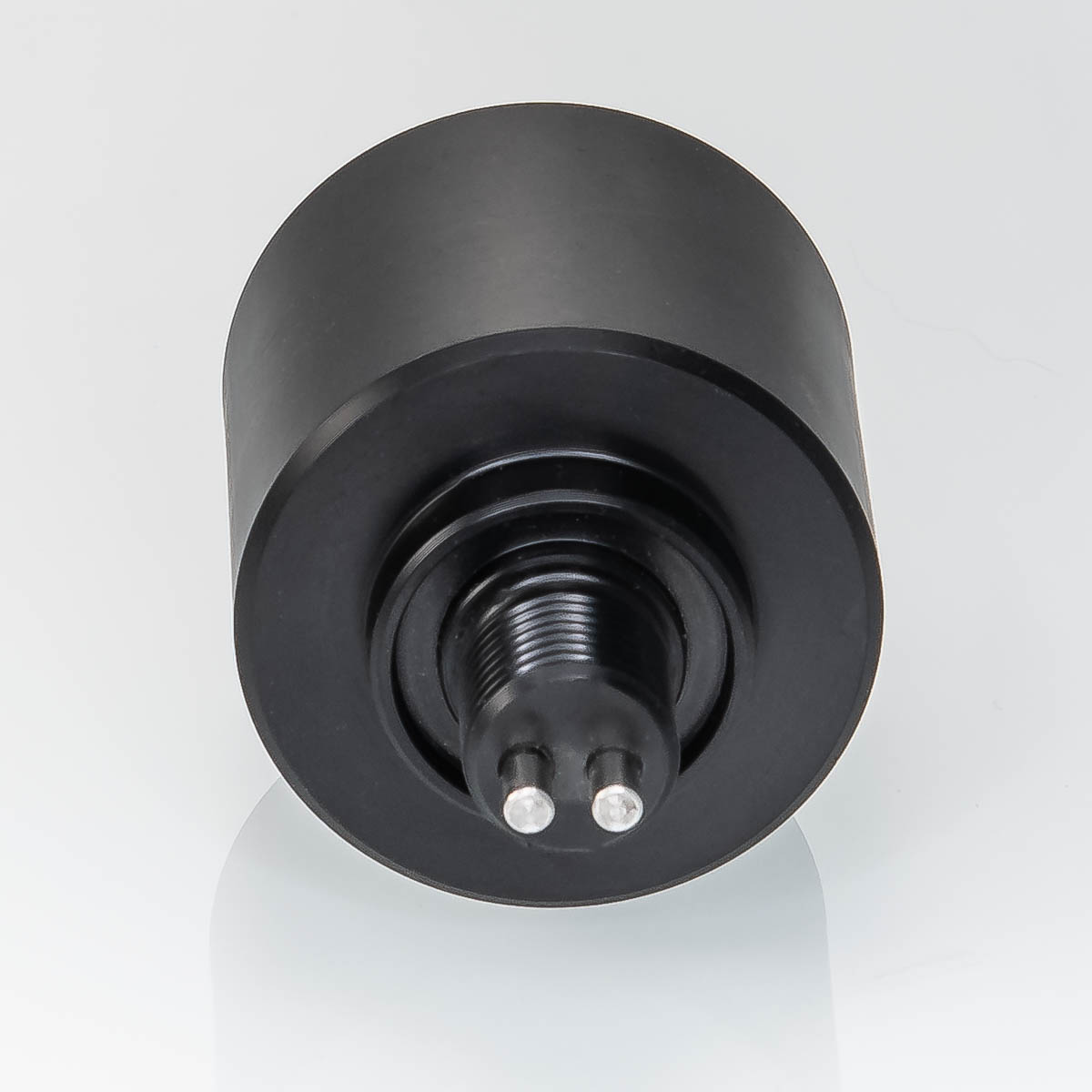

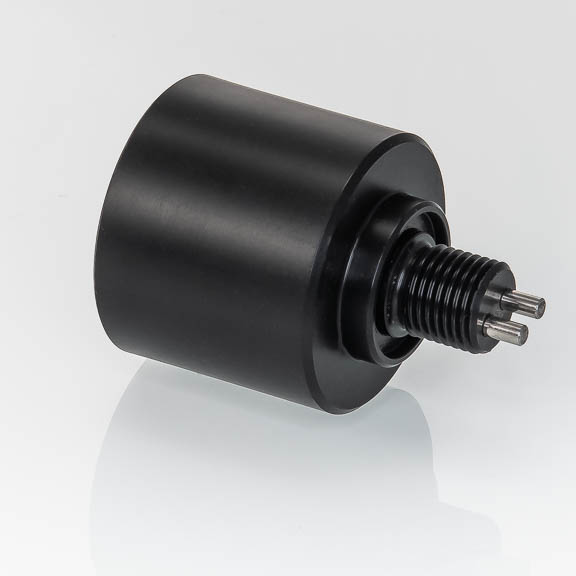

| Screw-in thread | ¼“, ½“, ¾“, more available upon request (⅜“) |
| Housing material | POM black Front panel: acrylic glass |
| Abmessungen in mm | |
| Dimensions in mm | Layout as per customer request |
| Accessories | T-piece ⅜“ screw-in thread Micro-LFG ¾“ external thread ¾“ union nut |
