LFG an/dig

Digital, analog-display measuring device. This measuring unit features an analog pointer scale. In addition, the current measurement value is also displayed as a digital value.

Now also with SMS function for the mobile transmission of measurement data

4 basic types (LFG an/dig)

  1. Measuring device with attached measuring cell
  2. Measuring device with wall mount
  3. Measuring device with a switching contact 24DC, executed with a solenoid valve plug, for direct connection of a solenoid valve
  4. Measuring device with a switching contact as a potential-free changeover

Product information LFG-an/dig

Available variants / technical data

Display Analog and digital display
Measuring ranges Measurement ranges according to customer specifications
Measurement values in the red/green range
on the dial scale according to customer specifications
SMS function for mobile transmission of measurement data
Alarm value display Limit values adjustable via rotary code switch
(10 switching points freely selectable)
Installation Wall mounting or for screwing onto a cartridge
Measuring cell screwed or measuring cell with 2m cable and plug
Measuring cell factor C=0,6 or C=0,1
Optional switching contact Connection of solenoid valve switching contact 24VDC, executed with solenoid valve plug or designed as a potential-free changeover contact, loadable up to 2A/250AC
Temperature compensation optional
Power connection 9V plug-in power supply 100-240VAC/9DC
for solenoid valve: power supply 100-240VAC/24VDC
Housing material ABS
Dimensions in mm 125 x 70 x 35
Front foil / company logo Layout as per customer request

Product photos

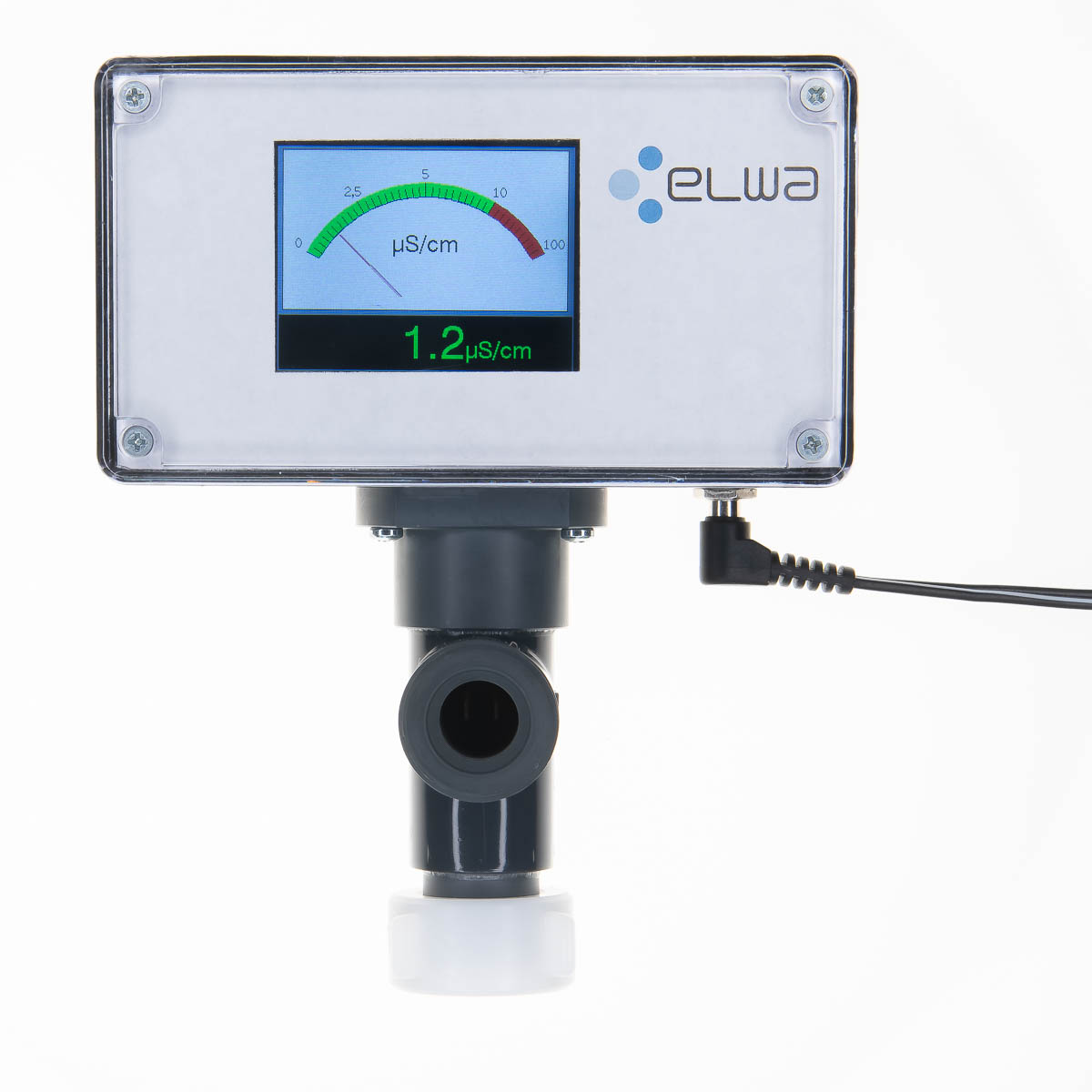

Front view with measuring cell

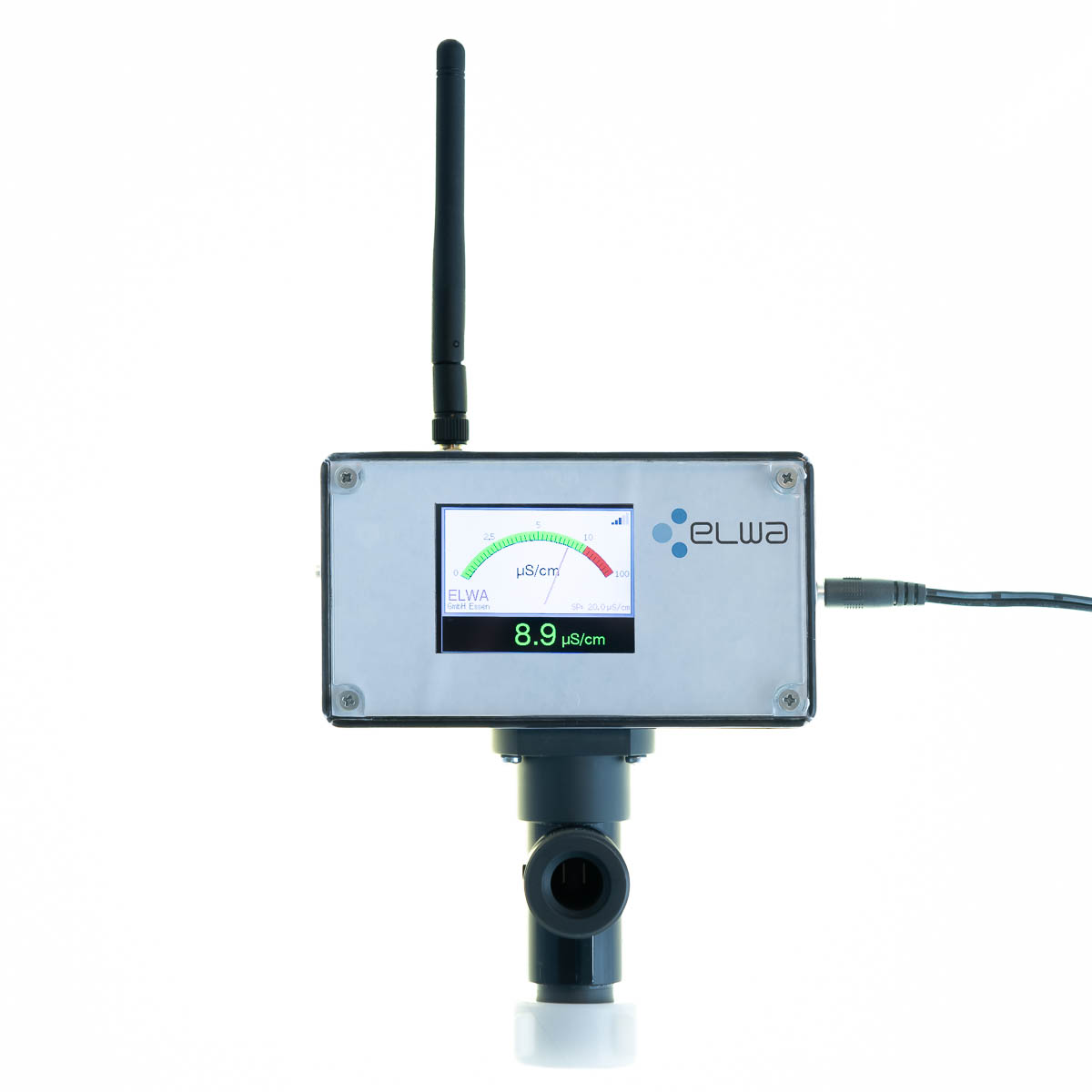

Front view with measuring cell and SMS-Function

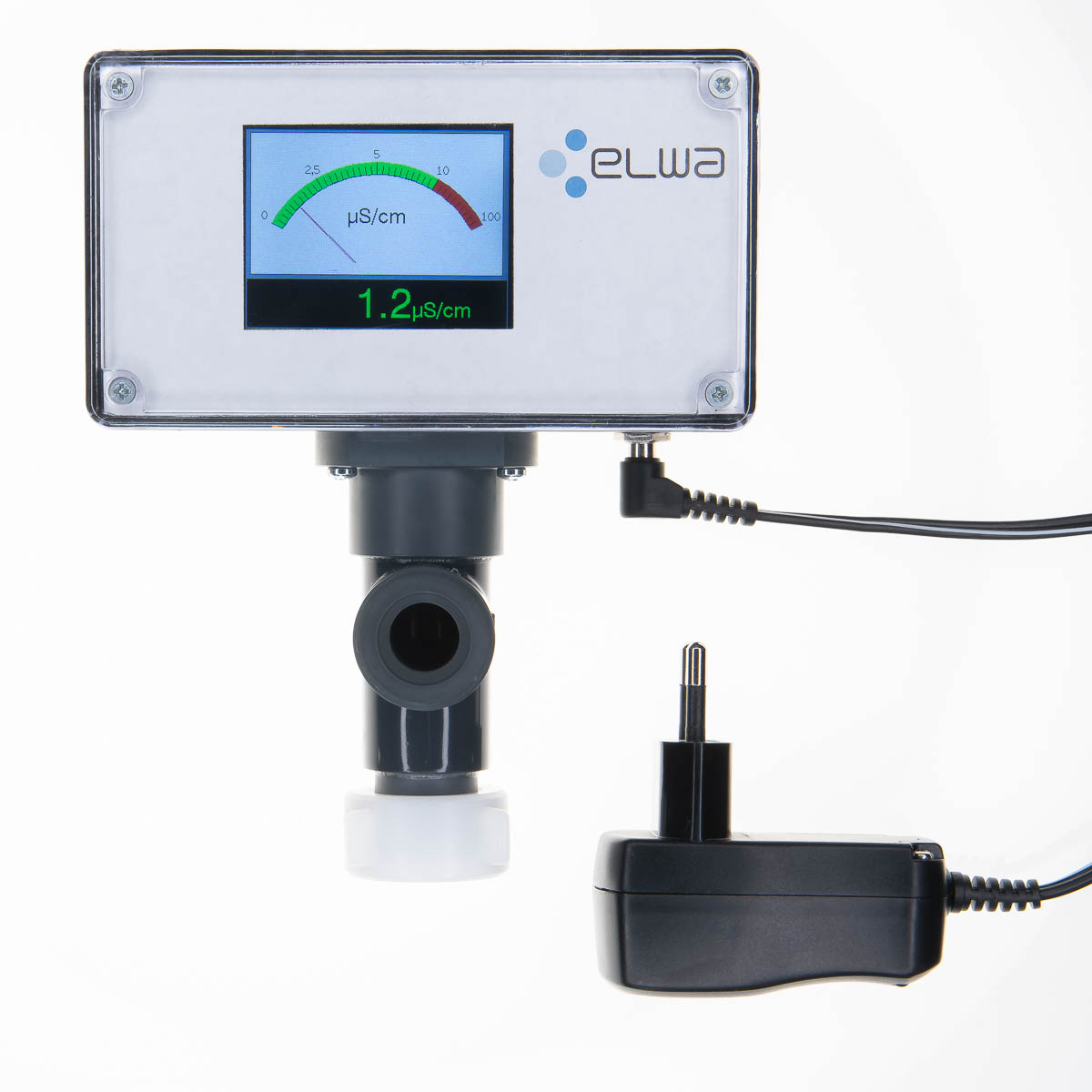

Front view with measuring cell and power supply

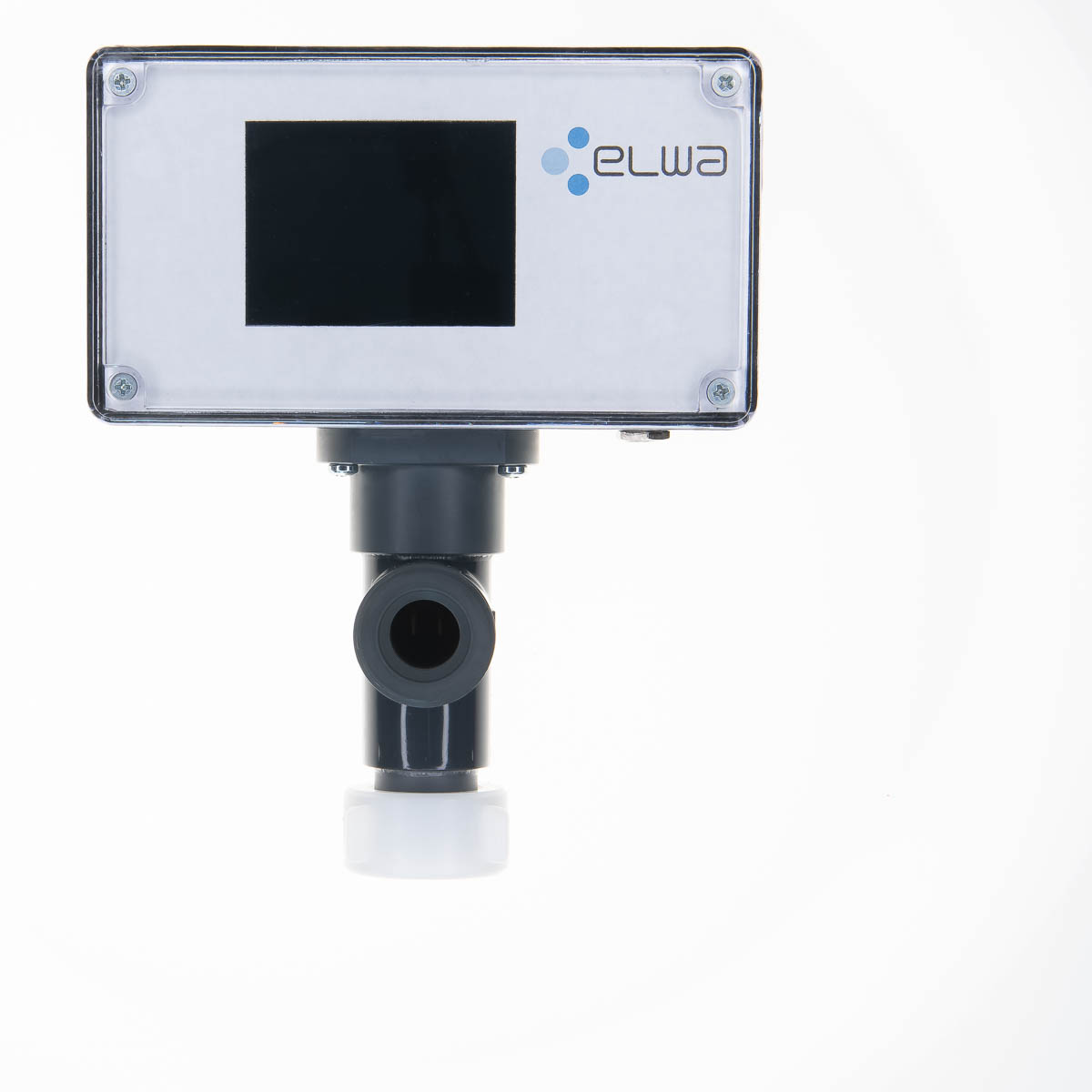

Front view (Display off) with measuring cell

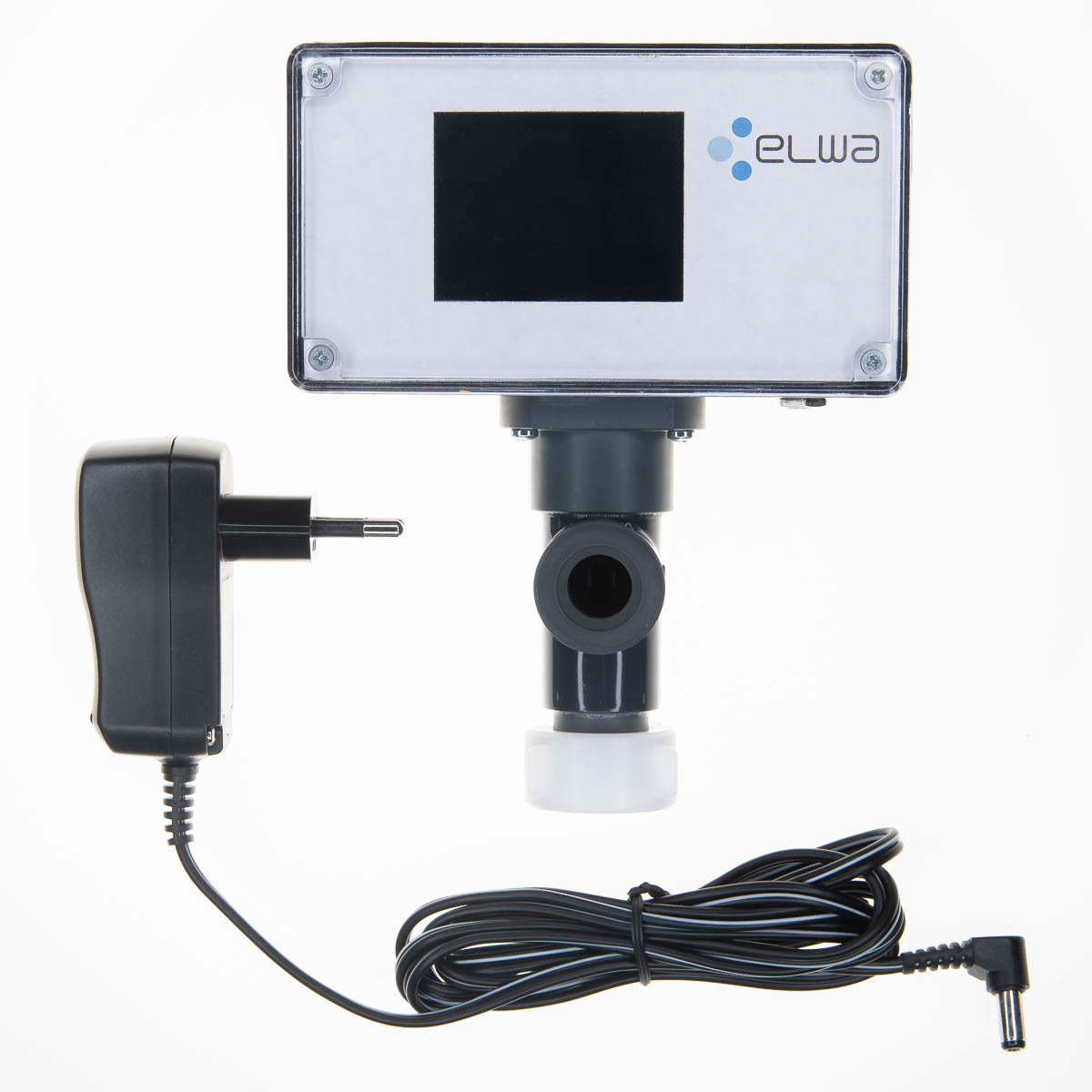

Front view (Display off) with measuring cell and power supply

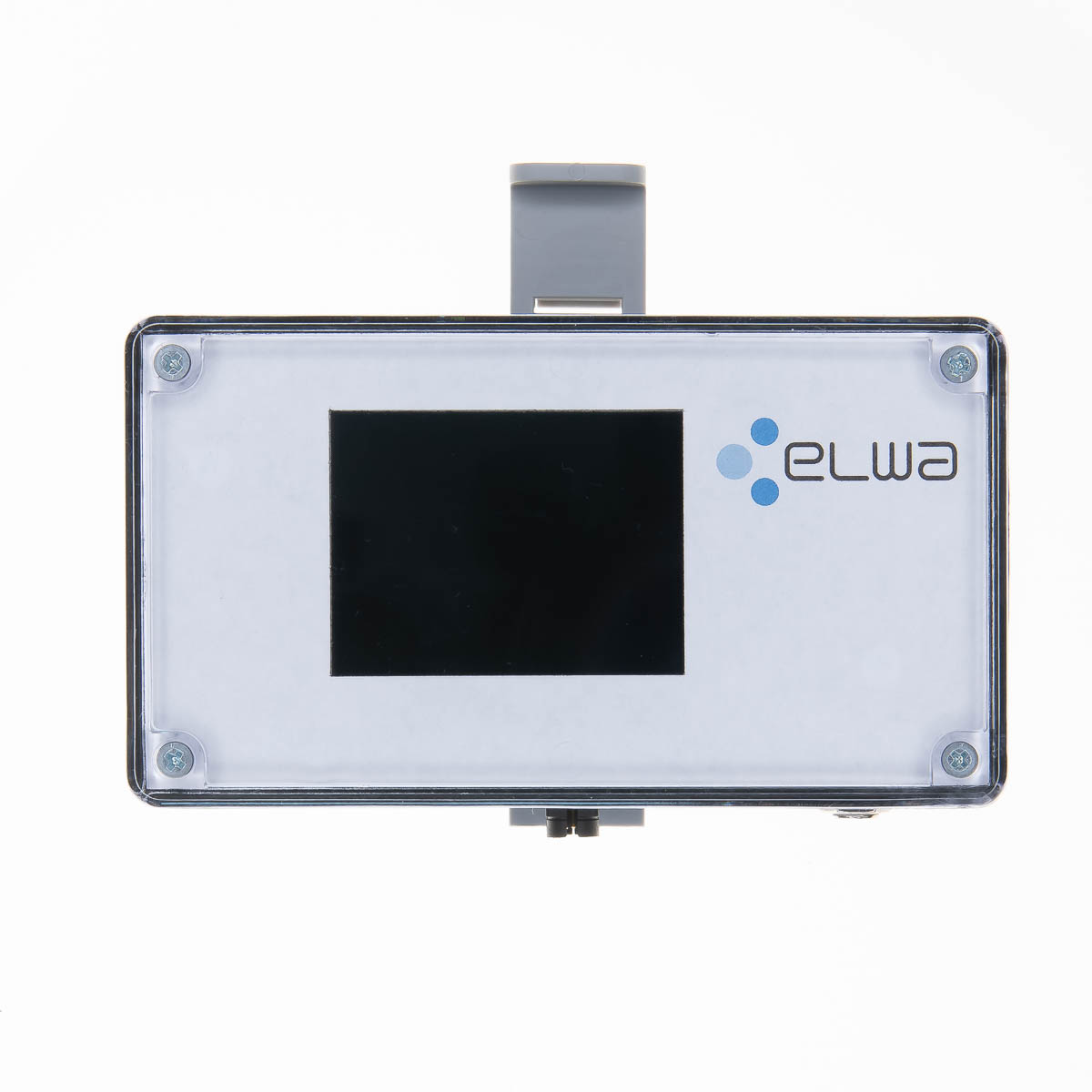

Front view (Display off)

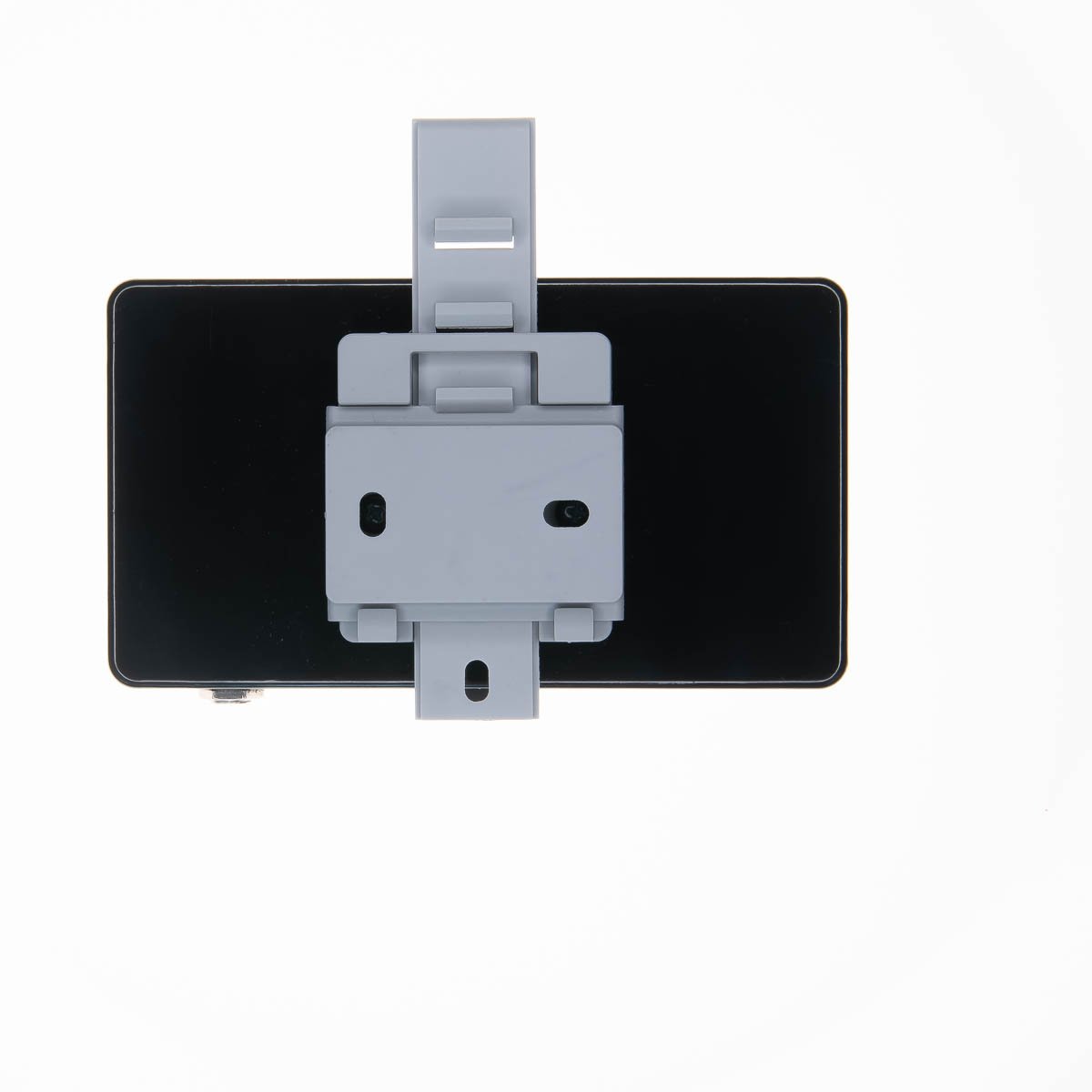

Rear view with wall mount

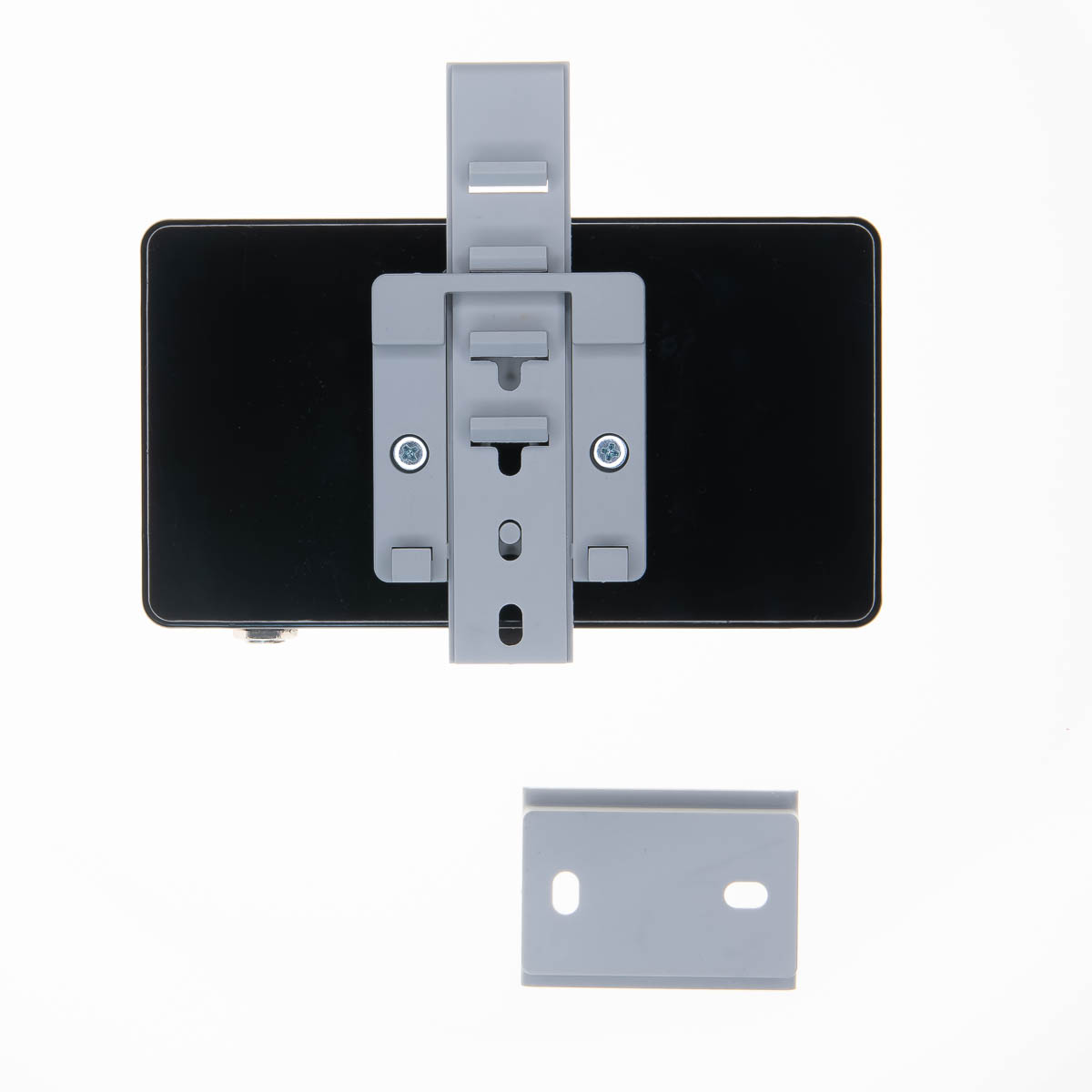

Rear view with wall mount (separately)
