LFG-6C

Measuring device with digital display for monitoring conductivity. A limit value can be set using the rotary switch. The current conductivity can be checked on the LCD display.

4 basic types (LFG-6C)

  1. Measuring device with attached measuring cell
  2. Measuring device with wall mount
  3. Measuring device with a switching contact 24DC, executed with a solenoid valve plug, for direct connection of a solenoid valve
  4. Measuring device with a switching contact as a potential-free changeover

Product information LFG-6C

Available variants / technical data

Display digital 3.5-digit LCD display
Measuring ranges 0-1,999μS/cm
0-19,99μS/cm
0-199,9μS/cm
0-1999μS/cm
Alarm value display Limit values adjustable via rotary code switch
(10 switching points freely selectable)
Installation Wall mounting or for screwing onto a cartridge
Measuring cell screwed or measuring cell with 2m cable and plug
Measuring cell factor C=0,6 or C=0,1
Optional switching contact Connection of solenoid valve switching contact 24VDC, executed with solenoid valve plug or designed as a potential-free changeover contact, loadable up to 2A/250AC
Temperature compensation optional
Power connection 9V plug-in power supply 100-240VAC/9DC
for solenoid valve: power supply 100-240VAC/24VDC
Housing material ABS
Dimensions in mm 125 x 70 x 35
Front foil / company logo Layout as per customer request

Product photos

Front view

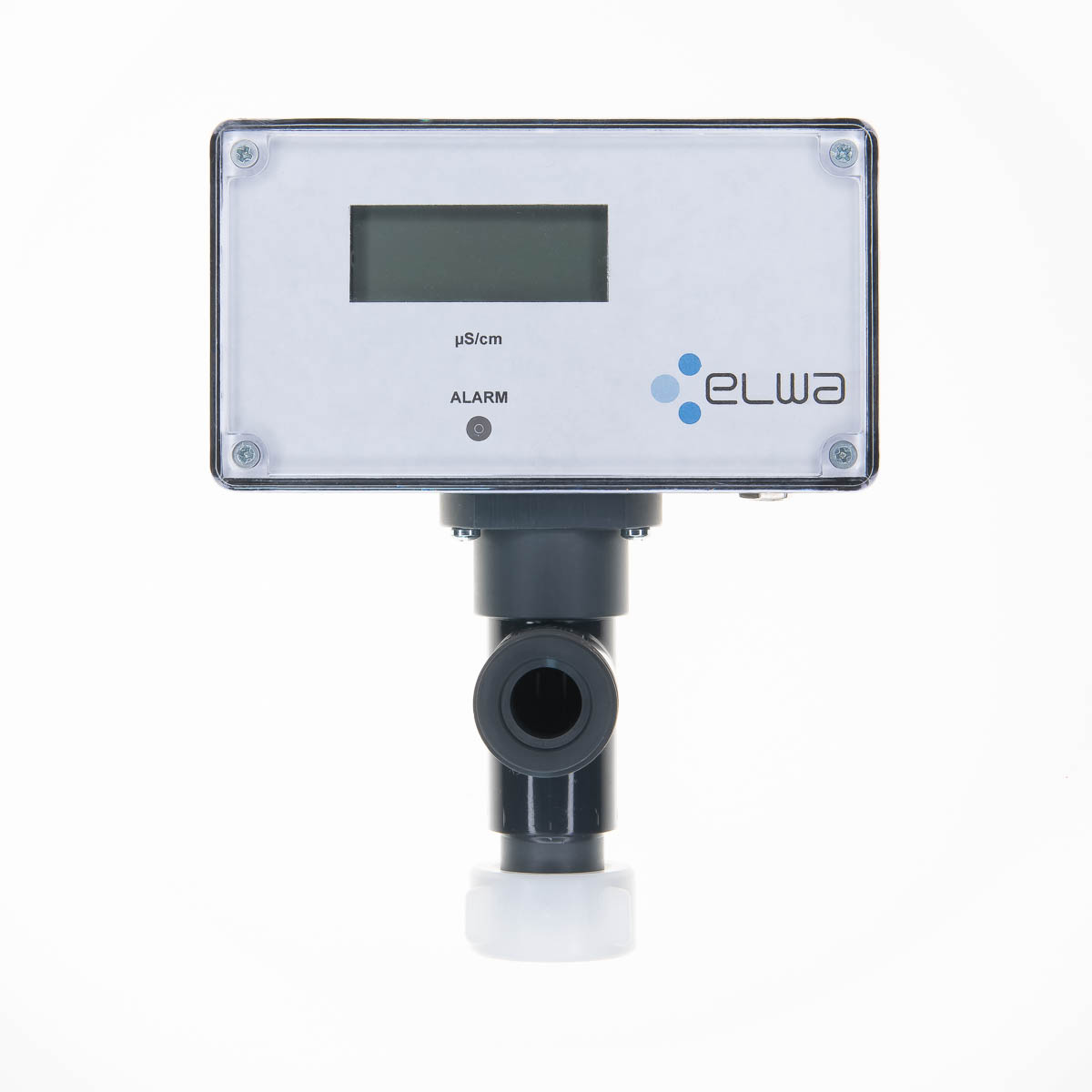

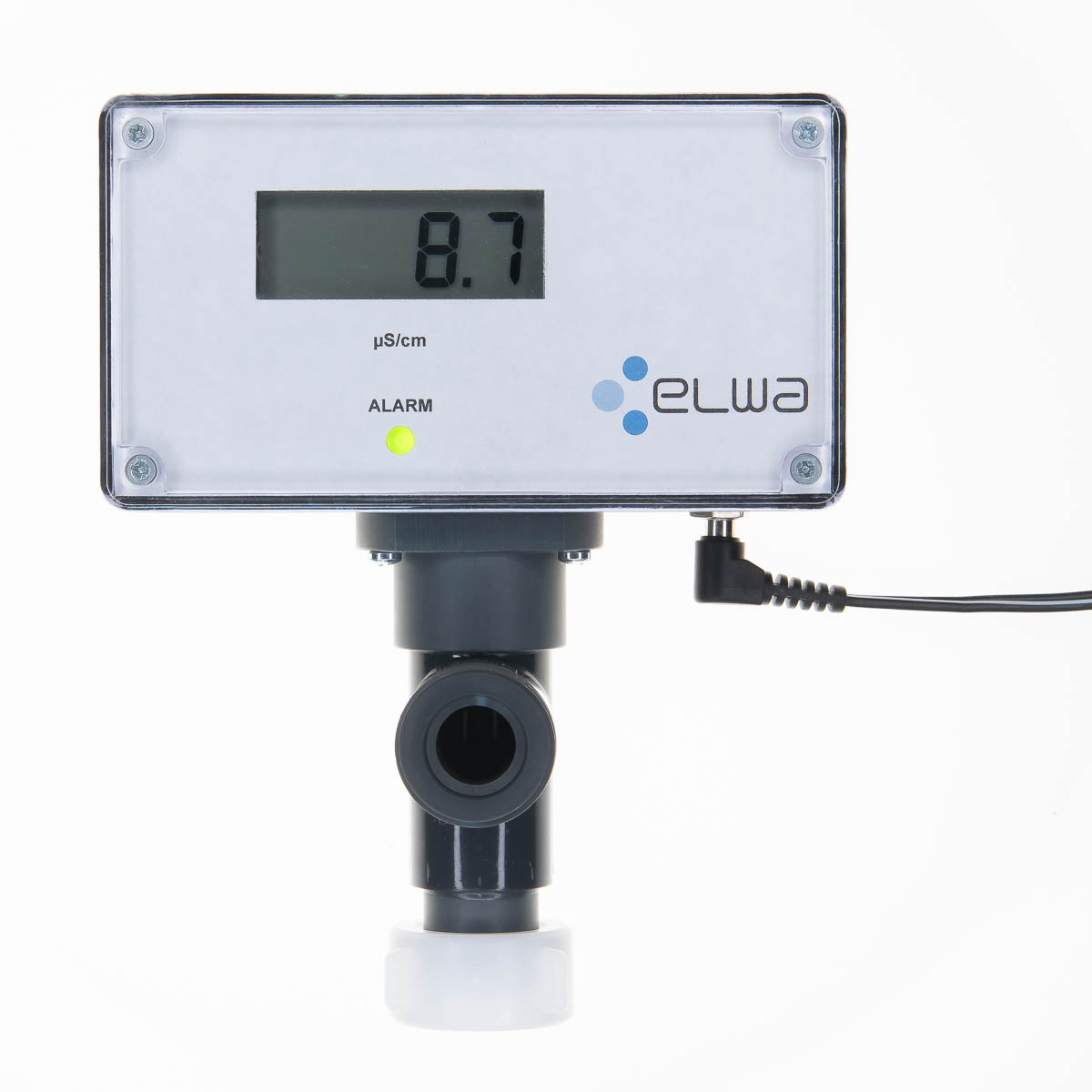

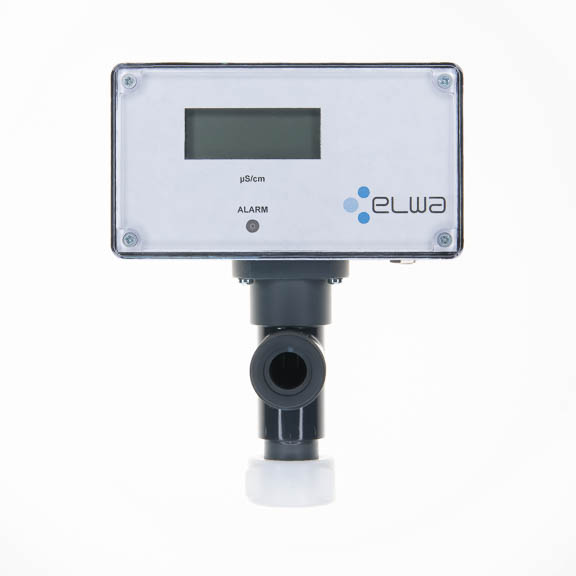

Front view with measuring cell

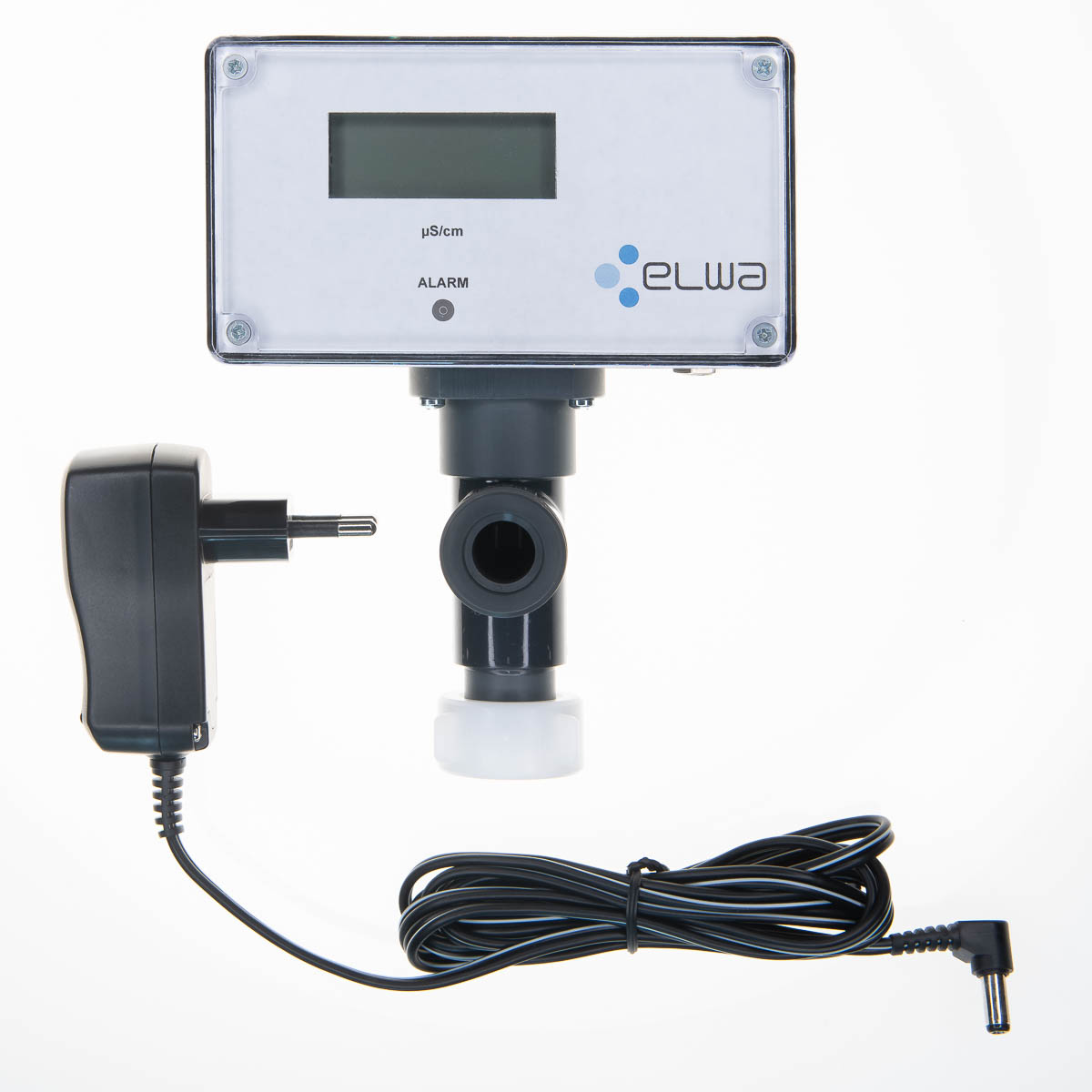

Front view with measuring cell and power supply

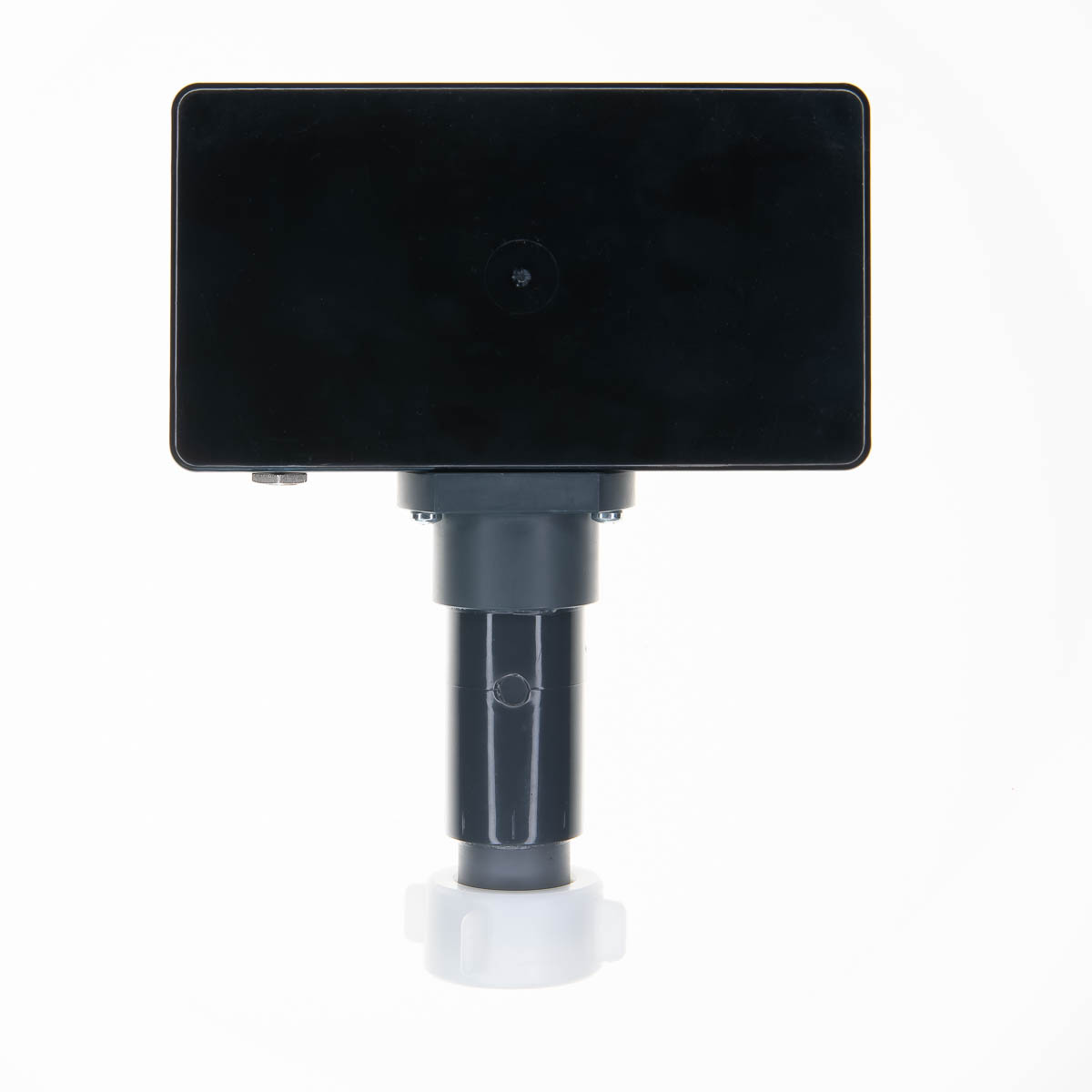

Rear view with measuring cell

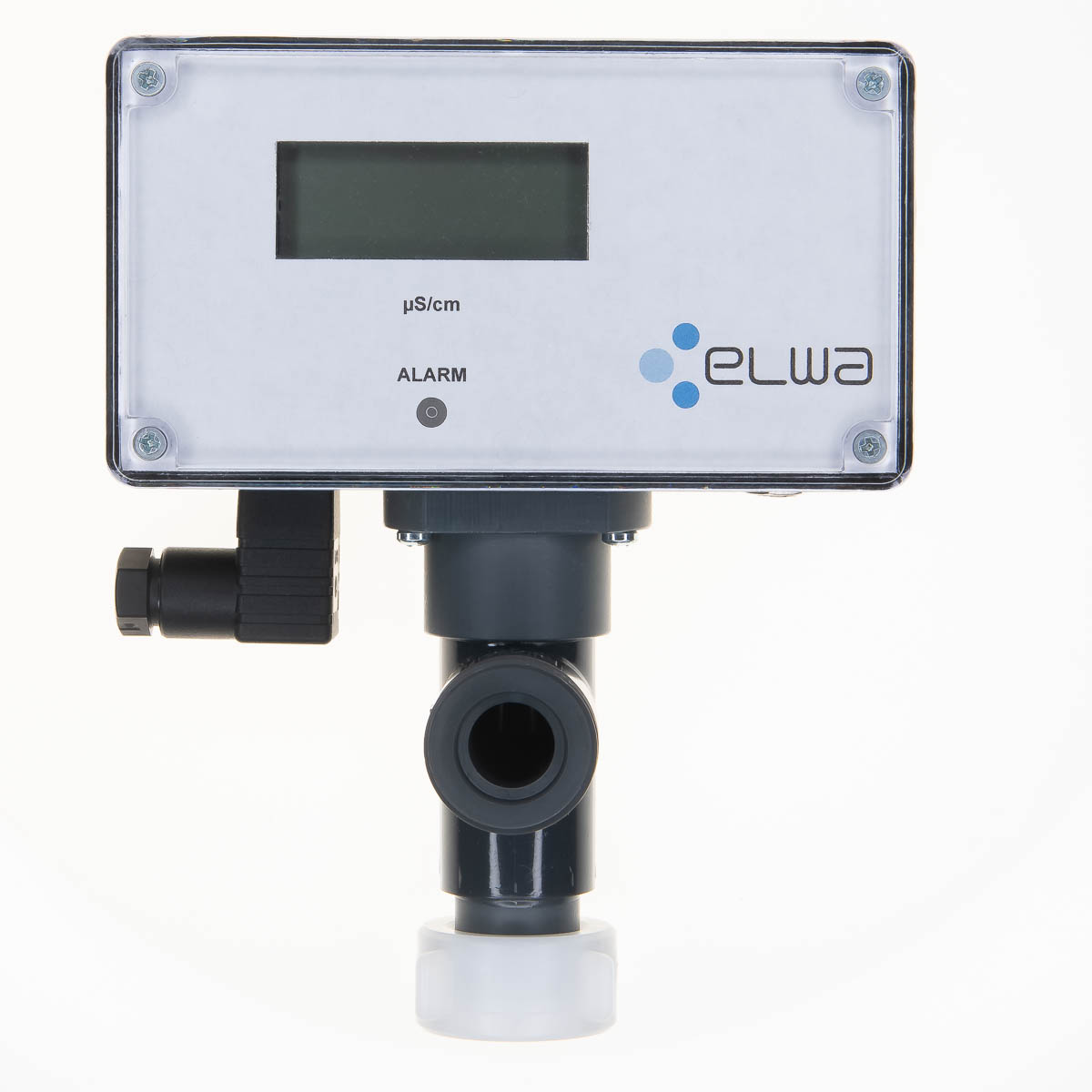

Front view with measuring cell and connection for switching

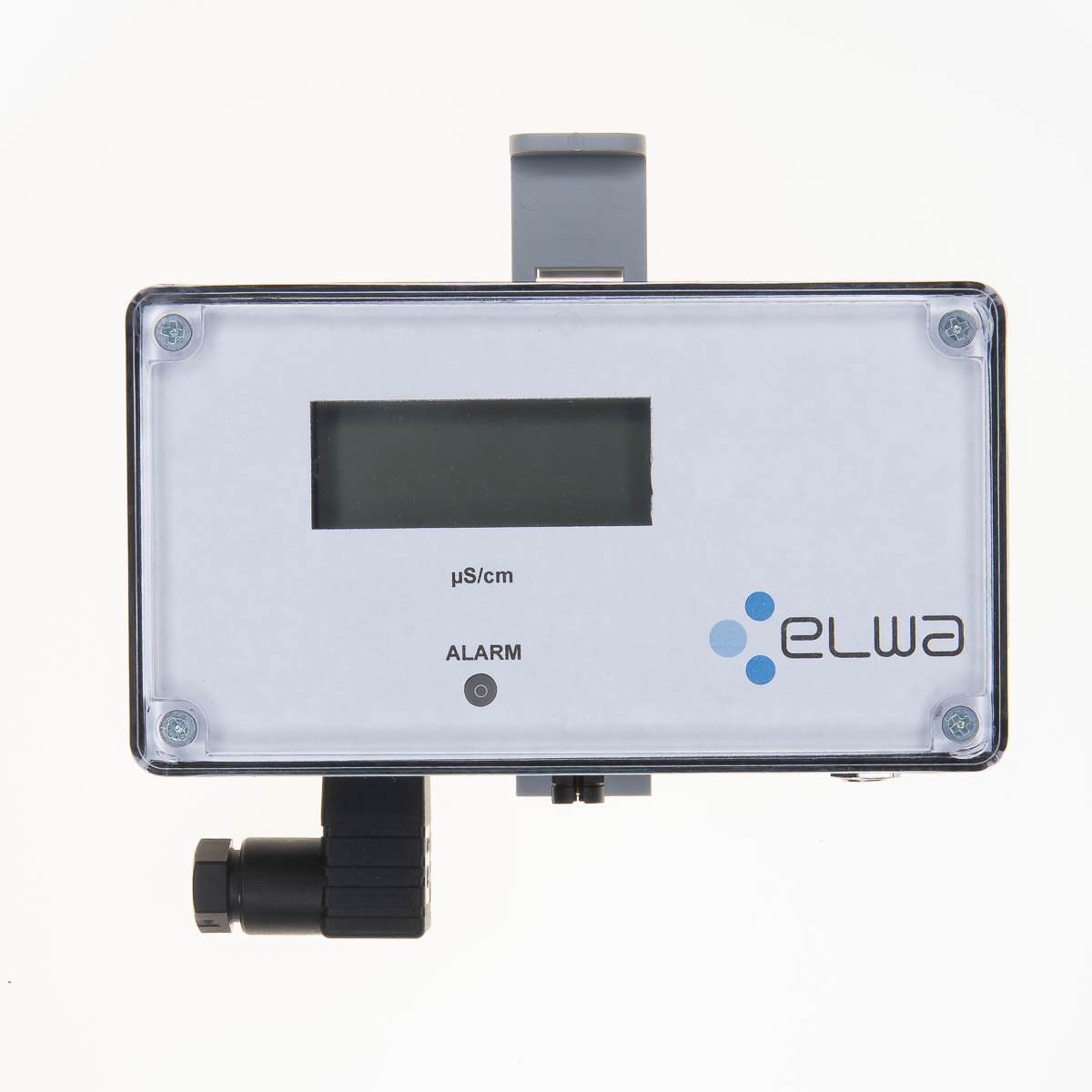

Front view connection for switching contact
Rear view with wall mount
Rear view with wall mount (removed)
Isometric view front
Isometric view rear with wall mount
